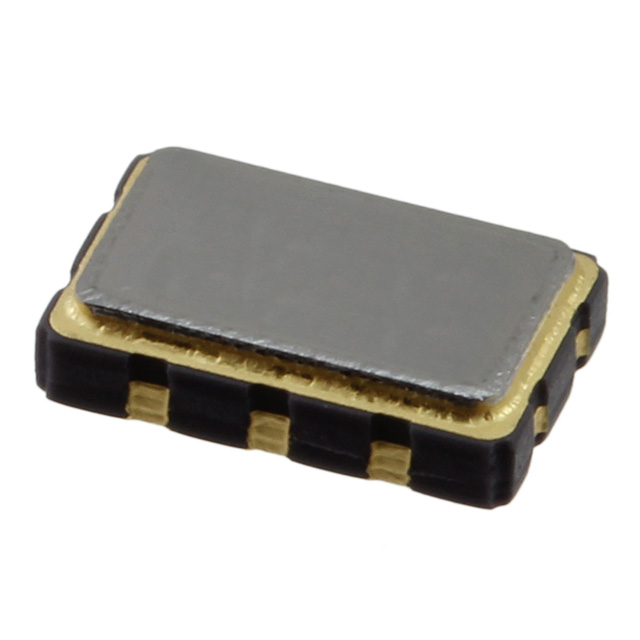

LDD500001Z
ActiveDiodes Inc
XTAL OSC XO 135.0000MHZ LVDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDD500001Z
ActiveDiodes Inc
XTAL OSC XO 135.0000MHZ LVDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD500001Z |
|---|---|
| Base Resonator | Crystal |
| Frequency | 135 MHz |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | LVDS |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 3.31 | |
Description
General part information
LDD500001 Series
135 MHz XO (Standard) LVDS Oscillator 2.5V
