Specification	AC5FPZ

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Tin
Current Rating	7.5 A
Fastening Type	Latch Lock
Features	Ground
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	5
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded
Termination	Solder Cup

XLR, AC "Z" Series

Part	Mounting Feature	Material Flammability Rating	Fastening Type	Ingress Protection	Shielding	Shell Size - Insert	Termination	Orientation	Number of Positions	Features	Current Rating	Color	Shell Finish	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Primary Material	Contact Finish - Mating	Connector Type	Shell Material	Contact Material	Insert Material	Applications
McGill Microwave Systems AC5FPZ	Flange	UL94 V-0	Latch Lock	IP40	Shielded	XLR	Solder Cup	Keyed	5	Ground	7.5 A	Silver	Nickel	-25 °C	75 °C	Panel Mount	Metal	Tin	Female Sockets Plug	Zinc Die Cast

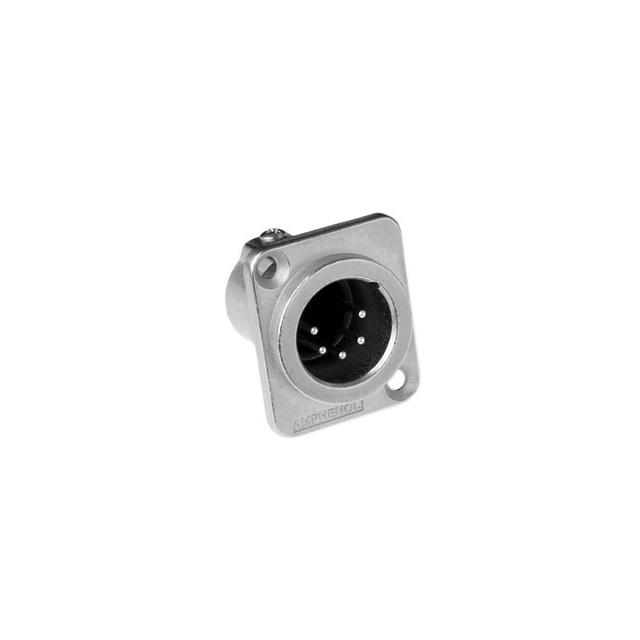

McGill Microwave Systems AC5MDZ BULK	Flange	UL94 V-0	Push-Pull	IP40	Shielded	XLR	Solder Cup	Keyed	5	Ground	7.5 A	Silver	Nickel	-25 °C	75 °C	Panel Mount	Metal	Silver	Male Pins Receptacle	Zinc Die Cast	Brass	Glass Filled Nylon 6/6 PA66 Polyamide	Audio
McGill Microwave Systems AC3FPZ	Flange	UL94 V-0	Latch Lock	IP40	Shielded	XLR	Solder Cup	Keyed	3	Ground	15 A	Silver	Nickel	-25 °C	75 °C	Panel Mount	Metal	Tin	Female Sockets Plug	Zinc Die Cast
