Q-0K02D000R072i

Active

Amphenol Custom Cable

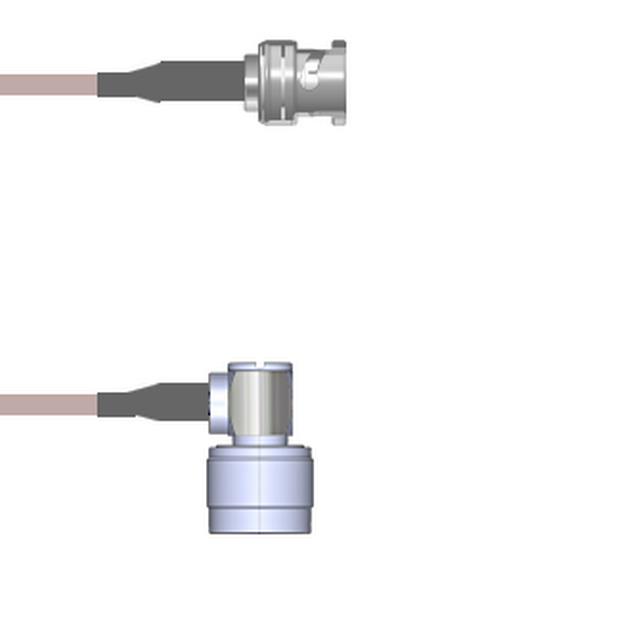

CBL ASSY BNC-NTYPE PLUG-PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0K02D000R072i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLUG-PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0K02D000R072i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0K02D0 Series

Part	Style	Frequency - Max [Max]	Length	Length	Features	2nd Contact Gender	Overall Impedance	1st Contact Gender	2nd Connector Mounting Type	1st Connector	Cable Type	2nd Connector	1st Connector Mounting Type	Color	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0K02D000R.75M	BNC to N-Type	4 GHz	29.53 "	750 mm	Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-0K02D000R072i	BNC to N-Type	4 GHz	72 in	1.8 m	Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	6 ft
Amphenol Custom Cable Q-0K02D000R048i	BNC to N-Type	4 GHz	48 in	1200 mm	Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	4 ft
Amphenol Custom Cable Q-0K02D000R003M	BNC to N-Type	4 GHz	118.1 in	3 m	Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	9.8 '
Amphenol Custom Cable Q-0K02D000R009i	BNC to N-Type	4 GHz	9 "	228.6 mm	Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-0K02D000R0.5M	BNC to N-Type	4 GHz	19.69 "	50 cm	Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-0K02D000R.25M	BNC to N-Type	4 GHz			Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper		9.843 "	250 mm
Amphenol Custom Cable Q-0K02D000R036i	BNC to N-Type	4 GHz	36 in	91.44 cm	Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-0K02D000R060i	BNC to N-Type	4 GHz	5 '	1.5 m	Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	5 ft
Amphenol Custom Cable Q-0K02D000R108i	BNC to N-Type	4 GHz	108 in	2.7 m	Shielded	Male	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug	RG-316 DB	N-Type Plug Right Angle	Free Hanging (In-Line)	Copper	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 266.07
		25	$ 260.83
		50	$ 255.59
		100	$ 250.35
		250	$ 245.10

Description

General part information

Q-0K02D0 Series

Cable Assembly Coaxial BNC to N-Type RG-316 DB 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
