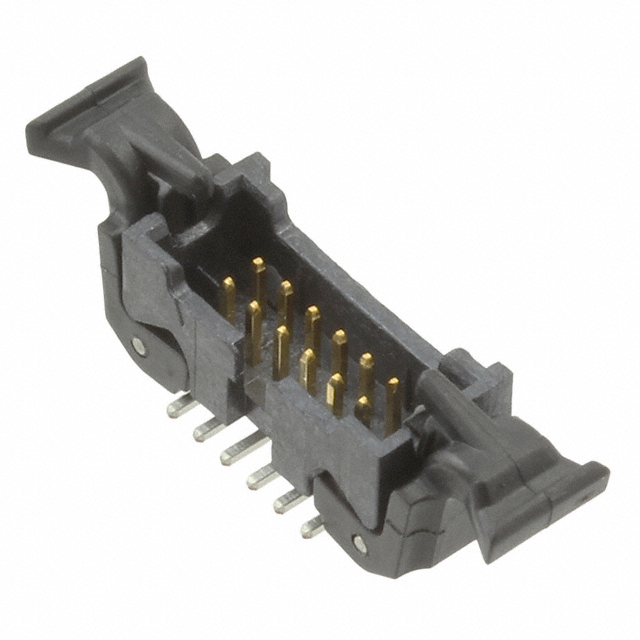

45212-220230

Active

3M (TC)

CONN, HEADER, 12POS, 2ROW, 1.27MM, SMT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Series Product Spec Datasheet

45212-220230

Active

3M (TC)

CONN, HEADER, 12POS, 2ROW, 1.27MM, SMT ROHS COMPLIANT: YES

Deep-Dive with AI

Documents451, 452 Series Product Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45212-220230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Pick and Place, Keying Slot
Insulation Height	5.65 mm
Insulation Height	0.222 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	8.13 mm, 7.21 mm, 6.6 mm, 5.84 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45212 Series

Part	Fastening Type	Number of Rows	Contact Finish - Post	Number of Positions Loaded	Features	Shrouding	Insulation Material	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Type	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Termination	Mounting Type	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Insulation Height	Insulation Height	Style	Row Spacing - Mating	Row Spacing - Mating	Mated Stacking Heights	Contact Finish Thickness - Mating
3M (TC) 45212-520230	Latch Lock/Eject Hooks Short	2	Tin	All	Keying Slot	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	0.094 in	2.4 mm	UL94 V-0	Gold	Copper Alloy	0.05 in	1.27 mm	Male Pin	Header	200 µin	5.08 µm	12	Solder	Through Hole Right Angle	Square	125 °C	-65 ░C	30 Áin	0.76 Ám	125 VDC	5.33 mm	0.21 in	Board to Cable/Wire	0.05 in	1.27 mm
3M (TC) 45212-220230	Latch Lock/Eject Hooks Short	2	Tin	All	Keying Slot Pick and Place	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)			UL94 V-0	Gold	Copper Alloy	0.05 in	1.27 mm	Male Pin	Header	200 µin	5.08 µm	12	Solder	Surface Mount	Square	125 °C	-65 ░C	30 Áin	0.76 Ám	125 VDC	5.65 mm	0.222 "	Board to Cable/Wire	0.05 in	1.27 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M (TC) 45212-620230	Latch Lock/Eject Hooks Short	2	Tin	All	Keying Slot	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	0.094 in	2.4 mm	UL94 V-0	Gold	Copper Alloy	0.05 in	1.27 mm	Male Pin	Header	200 µin	5.08 µm	12	Solder	Through Hole	Square	125 °C	-65 ░C	30 Áin	0.76 Ám	125 VDC	5.65 mm	0.222 "	Board to Cable/Wire	0.05 in	1.27 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M (TC) 45212-500200	Push-Pull	2	Tin	All	Keying Slot	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	0.094 in	2.4 mm	UL94 V-0	Gold	Copper Alloy	0.05 in	1.27 mm	Male Pin	Header	100 µin	2.54 µm	12	Solder	Through Hole Right Angle	Square	125 °C	-65 ░C			125 VDC	5.33 mm	0.21 in	Board to Cable/Wire	0.05 in	1.27 mm		Flash
3M (TC) 45212-620200	Latch Lock/Eject Hooks Short	2	Tin	All	Keying Slot	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	0.094 in	2.4 mm	UL94 V-0	Gold	Copper Alloy	0.05 in	1.27 mm	Male Pin	Header	100 µin	2.54 µm	12	Solder	Through Hole	Square	125 °C	-65 ░C			125 VDC	5.65 mm	0.222 "	Board to Cable/Wire	0.05 in	1.27 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.99
		10	$ 8.99
		100	$ 8.04
	Digi-Reel®	1	$ 9.99
		10	$ 8.99
		100	$ 8.04
	Tape & Reel (TR)	250	$ 5.82
		500	$ 5.43
		750	$ 5.22
		1250	$ 4.97
		1750	$ 4.82
Newark	Each	1	$ 13.69
		10	$ 12.66
		25	$ 11.77
		50	$ 11.02
		100	$ 10.40
		250	$ 9.79

Description

General part information

45212 Series

Connector Header Surface Mount 12 position 0.050" (1.27mm)

Documents

Technical documentation and resources

451, 452 Series Product Spec

Datasheet
