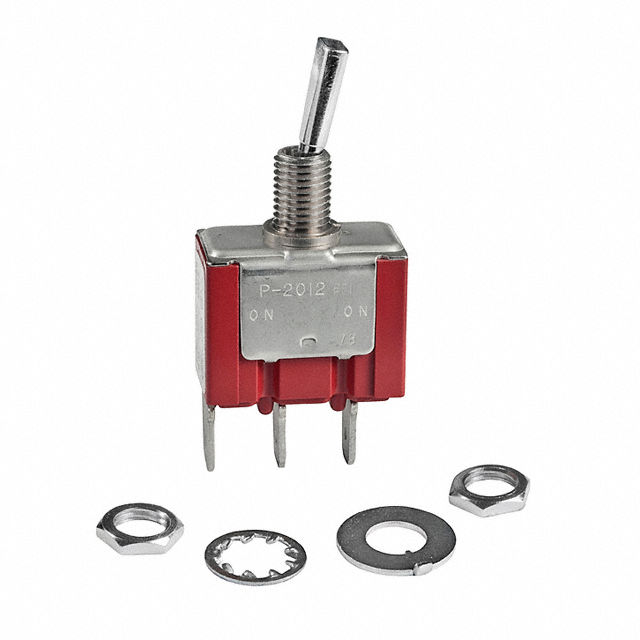

P2012EZ
ObsoleteNKK Switches
SWITCH TOGGLE SPDT 10A 125V
P2012EZ
ObsoleteNKK Switches
SWITCH TOGGLE SPDT 10A 125V
Description
General part information
P2012E Series
Toggle Switch SPDT Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | P2012EZ |
|---|---|
| Actuator Length | 11.4 mm |
| Actuator Material | Chrome Plated, Brass |
| Actuator Type | Flatted |
| Bushing Thread | M6 x 0.75 |
| Bushing Thread Diameter | 6 mm |
| Bushing Thread Pitch | 0.75 mm |
| Circuit | SPDT |
| Current Rating | 10 A |
| Electrical Life (Cycles) | 25000 |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -10 °C |
| Panel Cutout Diameter | 0.25 " |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | On-On |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
