572-003-000-400

Active

EDAC Inc.

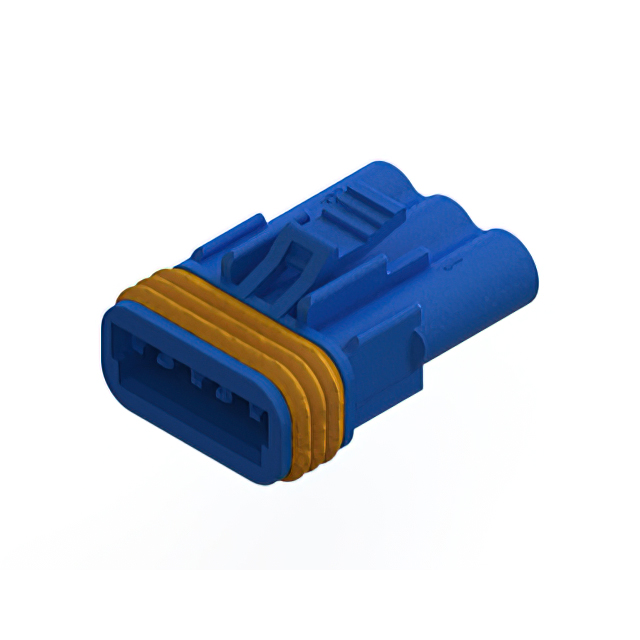

CONN RCPT HSG 3POS 5.80MM

Search across all available documentation for this part.

Active

EDAC Inc.

CONN RCPT HSG 3POS 5.80MM

Technical Specifications

Parameters and characteristics for this part

Specification	572-003-000-400

Color	Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.228 in
Pitch [x]	5.8 mm

Part	Contact Type	Number of Rows	Features	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Termination	Connector Type	Note	Mounting Type	Fastening Type	Pitch [x]	Pitch [x]
EDAC Inc. 572-003-000-400	Female Socket	1	Waterproof	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Blue	Crimp	Receptacle	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	0.228 in	5.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.97

General part information

3 Rectangular Connectors - Housings Receptacle Blue 0.228" (5.80mm)
