PKES Series

Part	Features	Style	Type	Color	Diameter (Skirt) - Option 2	Diameter (Skirt) - Option 1	Shaft Size	Material	Height	Indicator
TE Connectivity AMP Connectors PKES70B1/4	6-32 Set Screw	Cylindrical with Skirt	Fluted	Black	0.855 in	0.744 in	0.25 in	Plastic	0.526 in	Line on Side and Skirt
TE Connectivity AMP Connectors PKES90B1/4	6-32 Set Screw	Cylindrical with Skirt	Fluted	Black	1.01 in	0.889 in	0.25 in	Plastic	0.57 in	Line on Side and Skirt
TE Connectivity AMP Connectors PKES120B1/4

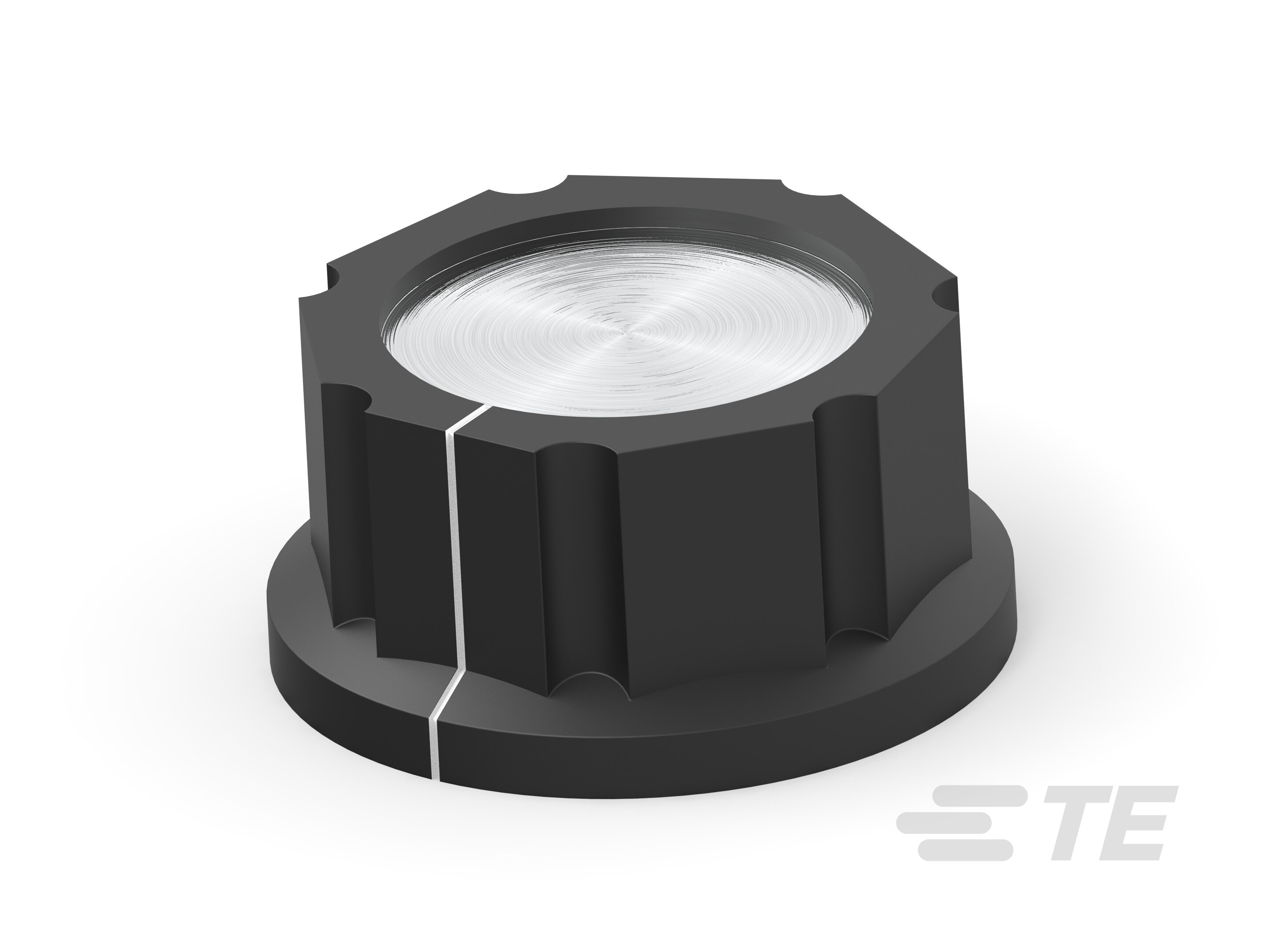

TE Connectivity AMP Connectors PKES140B1/4	6-32 Set Screw	Cylindrical with Skirt	Fluted	Black	1.5 in	1.37 in	0.25 in	Plastic	0.693 in	Line on Side and Skirt
TE Connectivity AMP Connectors PKES150B1/4	6-32 Set Screw	Cylindrical with Skirt	Fluted	Black	1.77 in	1.55 in	0.25 in	Plastic	0.831 in	Line on Side and Skirt
TE Connectivity AMP Connectors PKES120B1/4	6-32 Set Screw	Cylindrical with Skirt	Fluted	Black	1.3 in	1.16 in	0.25 in	Plastic	0.628 in	Line on Side and Skirt
TE Connectivity AMP Connectors PKES150B1/4	6-32 Set Screw	Cylindrical with Skirt	Fluted	Black	1.77 in	1.55 in	0.25 in	Plastic	0.831 in	Line on Side and Skirt
TE Connectivity AMP Connectors PKES70B1/4	6-32 Set Screw	Cylindrical with Skirt	Fluted	Black	0.855 in	0.744 in	0.25 in	Plastic	0.526 in	Line on Side and Skirt
TE Connectivity AMP Connectors PKES140B1/4	6-32 Set Screw	Cylindrical with Skirt	Fluted	Black	1.5 in	1.37 in	0.25 in	Plastic	0.693 in	Line on Side and Skirt
TE Connectivity AMP Connectors PKES90B1/4	6-32 Set Screw	Cylindrical with Skirt	Fluted	Black	1.01 in	0.889 in	0.25 in	Plastic	0.57 in	Line on Side and Skirt
