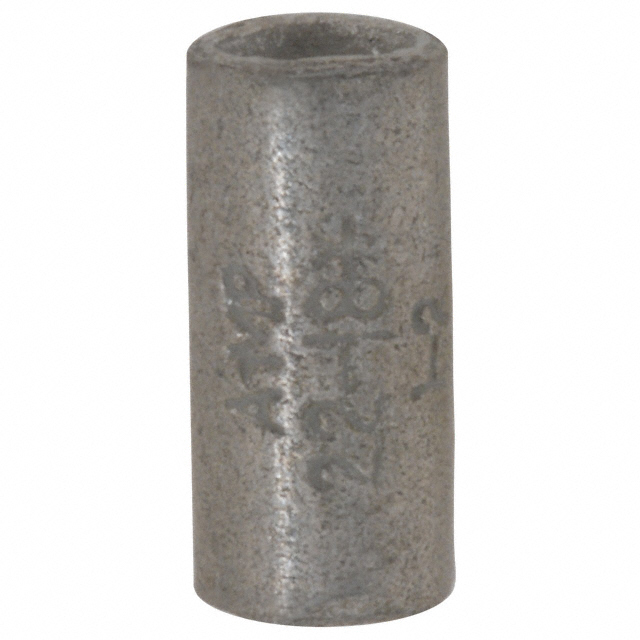

34130
ActiveTE Connectivity AMP Connectors
CONN INLINE 16-22 AWG CRIMP
34130
ActiveTE Connectivity AMP Connectors
CONN INLINE 16-22 AWG CRIMP
Description
General part information
3413 Series
Parallel Splice, 22 – 16 AWG, .26 – 1.65 mm² Wire, Serrated, 509 – 3260 CMA, Copper, 7.65 mm [.301 in] Length, Loose Piece, Closed Barrel
Technical Specifications
Parameters and characteristics for this part
| Specification | 34130 |
|---|---|
| Features | Brazed Seam, Serrated Mating Area |
| Insulation | Non-Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings (Parallel) |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
