Part	Ingress Protection	Panel Cutout Shape	Panel Cutout Length	Panel Cutout Width	Approval Agency	Connector Type	Current Rating	Termination	Voltage Rating	Number of Positions	Mounting Type	Material Flammability Rating	Connector Style	Ingress Protection Description	Ingress Protection IP Rating	Features
Altech Corporation F32S55A
Altech Corporation F32S70A	IP44	Square	75 mm	75 mm	cULus	Female Sockets Receptacle	30 A	Screw	277 VAC	3	Flange Panel Mount	UL94 V-2	Pin and Sleeve (2P3W)
Altech Corporation F32S58A		Rectangular	97 mm	80 mm	cULus	Female Sockets Receptacle	30 A	Screw	480 VAC	3	Angled Flange Panel Mount	UL94 V-2	Pin and Sleeve (2P3W)	Dust Tight Waterproof	IP67
Altech Corporation F32S23A	IP44	Rectangular	97 mm	80 mm	cULus	Female Sockets Receptacle	30 A	Screw	250 V	3	Angled Flange Panel Mount	UL94 V-2	Pin and Sleeve (2P3W)
Altech Corporation F32S15A		Square	75 mm	75 mm	cULus	Female Sockets Receptacle	30 A	Screw	120 V	3	Flange Panel Mount	UL94 V-2	Pin and Sleeve (2P3W)	Dust Tight Waterproof	IP67	Chemical Resistant Impact Resistant Push-Twist Lock
Altech Corporation F32S78A
Altech Corporation F32S73A

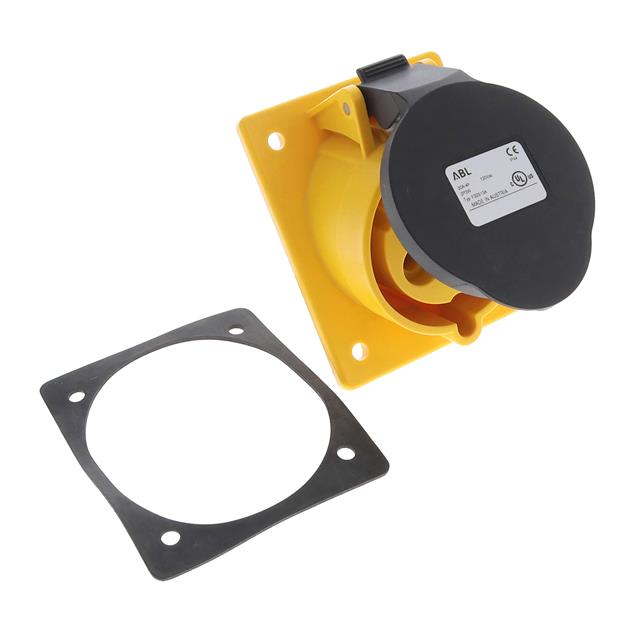

Altech Corporation F32S13A	IP44	Rectangular	97 mm	80 mm	cULus	Female Sockets Receptacle	30 A	Screw	120 V	3	Angled Flange Panel Mount	UL94 V-2	Pin and Sleeve (2P3W)
Altech Corporation F32S50A
Altech Corporation F32S75A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources

No documents available
