C94-NKB24H-NBO
ActiveVisual Communications Company - VCC

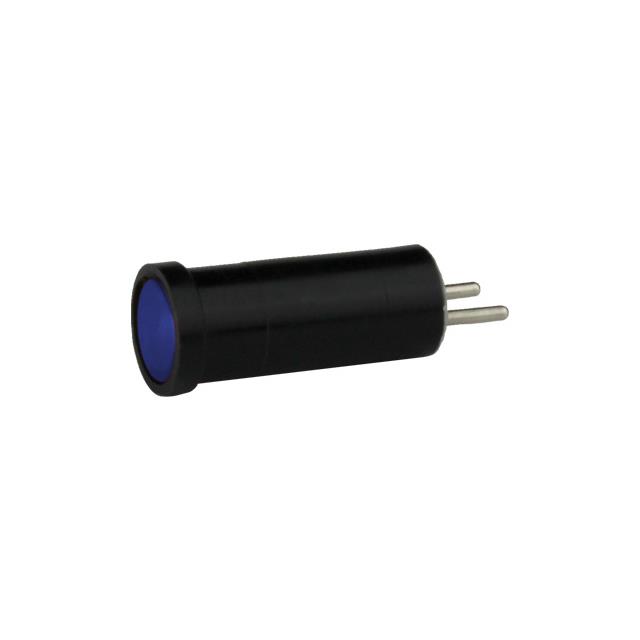

PMI LED .290" FLUSH BLUE 24V
Deep-Dive with AI
Search across all available documentation for this part.
C94-NKB24H-NBO
ActiveVisual Communications Company - VCC
PMI LED .290" FLUSH BLUE 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C94-NKB24H-NBO |
|---|---|
| Current | 18 mA |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 7.37 mm |
| Lens Transparency | Diffused |
| Panel Cutout Dimensions [x] | 7.37 mm |
| Panel Cutout Dimensions [x] | 0.29 in |
| Panel Cutout Shape | Round |
| Termination Style | 0.201 in |
| Termination Style | Wire Wrap |
| Termination Style | 5.1 mm |
| Type | LED |
| Viewing Angle | 15 ° |
| Voltage | 24 V |
| Wavelength - Peak | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 7.39 | |
Description
General part information
C94-NKB24 Series
LED Panel Indicator Blue Diffused 15° 24V 18mA Wire Wrap, 0.201" (5.1mm)
