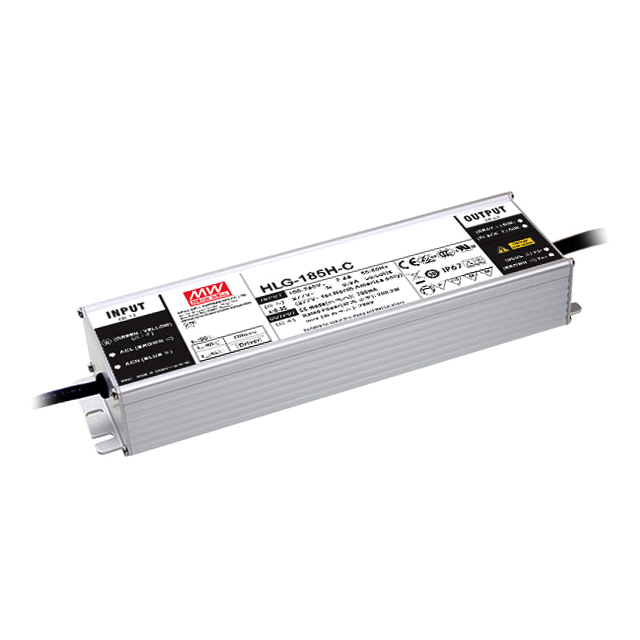

HLG-185H-C500B

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 200-400V 500MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLG-185H-C500B

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 200-400V 500MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-185H-C500B

Approval Agency	cURus, ENEC, CB, CCC, CE, RCM
Current - Output (Max) [Max]	500 mA
Dimming	Analog, PWM
Efficiency	94 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	200 W
Ratings	IP67
Size / Dimension [x]	8.03 "
Size / Dimension [x]	204 mm
Size / Dimension [y]	68 mm
Size / Dimension [y]	2.68 "
Size / Dimension [z]	38.8 mm
Size / Dimension [z]	1.53 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	400 V
Voltage - Output [Min]	200 V

HLG-185H Series

Part	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Approval Agency	Voltage - Isolation	Termination Style	Type	Voltage - Input (Max) [Max]	Ratings	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Dimming	Voltage - Output [Min]	Voltage - Output [Max]
MEAN WELL USA Inc. HLG-185H-36A	93.5 %	5.2 A	90 VAC	Chassis Mount	1	OCP OTP OVP SCP	187 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus PSE RCM TUV	3750 V	Wire Leads	Constant Current Voltage	305 VAC	IP65	36 V	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "
MEAN WELL USA Inc. HLG-185H-12	91.5 %	13 A	90 VAC	Chassis Mount	1	OCP OTP OVP SCP	156 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus PSE RCM TUV	3750 V	Wire Leads	Constant Current Voltage	305 VAC	IP67	12 V	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "
MEAN WELL USA Inc. HLG-185H-54A	94 %	3.45 A	90 VAC	Chassis Mount	1	OCP OTP OVP SCP	186 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus PSE RCM TUV	3750 V	Wire Leads	Constant Current Voltage	305 VAC	IP65	54 V	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "
MEAN WELL USA Inc. HLG-185H-42B	94 %	4.4 A	90 VAC	Chassis Mount	1	OCP OTP OVP SCP	185 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus PSE RCM TUV	3750 V	Wire Leads	Constant Current Voltage	305 VAC	IP67	42 V	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	Analog PWM
MEAN WELL USA Inc. HLG-185H-54AB	94 %	3.45 A	90 VAC	Chassis Mount	1	OCP OTP OVP SCP	186 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus EAC KC PSE RCM TUV	3750 V	Wire Leads	Constant Current Voltage	305 VAC	IP65	54 V	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "
MEAN WELL USA Inc. HLG-185H-42AB	94 %	4.4 A	90 VAC	Chassis Mount	1	OCP OTP OVP SCP	185 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus KC PSE RCM TUV	3750 V	Wire Leads	Constant Current Voltage	305 VAC	IP65	42 V	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	Analog PWM
MEAN WELL USA Inc. HLG-185H-20A	93 %	9.3 A	90 VAC	Chassis Mount	1	OCP OTP OVP SCP	186 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus PSE RCM TUV	3750 V	Wire Leads	Constant Current Voltage	305 VAC	IP65	20 V	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "
MEAN WELL USA Inc. HLG-185H-C500B	94 %	500 mA	90 VAC	Chassis Mount	1	OTP OVP SCP	200 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus ENEC RCM	3750 V	Wire Leads	Constant Current	305 VAC	IP67		68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	Analog PWM	200 V	400 V
MEAN WELL USA Inc. HLG-185H-30B	93.5 %	6.2 A	90 VAC	Chassis Mount	1	OCP OTP OVP SCP	186 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus PSE RCM TUV	3750 V	Wire Leads	Constant Current Voltage	305 VAC	IP67	30 VDC	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	Analog PWM
MEAN WELL USA Inc. HLG-185H-42A	94 %	4.4 A	90 VAC	Chassis Mount	1	OCP OTP OVP SCP	185 W	90 °C	-40 °C	AC DC Converter	CB CCC CE cURus PSE RCM TUV	3750 V	Wire Leads	Constant Current Voltage	305 VAC	IP65	42 V	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "
