SRCN1A25-24P

Active

JAE Electronics

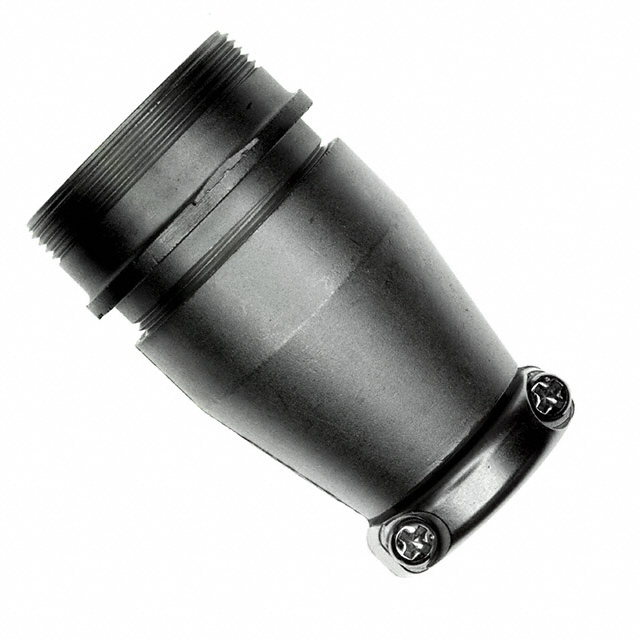

CONN RCPT MALE 24P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCircular Connectors Datasheet

SRCN1A25-24P

Active

JAE Electronics

CONN RCPT MALE 24P SOLDER CUP

Deep-Dive with AI

DocumentsCircular Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN1A25-24P

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [diameter]	17 mm
Cable Opening [diameter]	0.669 in
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Cable Clamp, Backshell
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	24
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	24
Shell Size - Insert [Min]	25
Voltage Rating	350 V, 250 VAC

SRCN1A25 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shell Finish	Features	Backshell Material, Plating	Connector Type	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Color	Insert Material	Contact Finish - Mating	Current Rating (Amps)	Orientation	Mounting Type	Contact Material	Material Flammability Rating	Shell Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Voltage Rating	Applications	Shell Size - Insert	Number of Positions
JAE Electronics SRCN1A25-24P	-25 °C	85 °C	Metal	Nickel	Backshell Cable Clamp	Aluminum Alloy Nickel	Male Pins Receptacle	24	17 mm	0.669 in	Silver	Plastic	Silver	5 A	N	Free Hanging (In-Line)	Copper Alloy	UL94 V-0	Aluminum Alloy	24	25	250 VAC 350 V	Communication Systems Telecommunications Test Equipment & Measurement
JAE Electronics SRCN1A25-16S	-25 °C	85 °C	Metal	Nickel	Backshell Cable Clamp	Aluminum Alloy Nickel	Receptacle Female Sockets		17 mm	0.669 in	Silver	Plastic	Silver	10 A	N	Free Hanging (In-Line)	Copper Alloy	UL94 V-0	Aluminum Alloy			250 VAC 350 V	Communication Systems Telecommunications Test Equipment & Measurement	25-16	16
JAE Electronics SRCN1A25-24S	-25 °C	85 °C	Metal	Nickel	Backshell Cable Clamp	Aluminum Alloy Nickel	Receptacle Female Sockets	24	17 mm	0.669 in	Silver	Plastic	Silver	5 A	N	Free Hanging (In-Line)	Copper Alloy	UL94 V-0	Aluminum Alloy	24	25	250 VAC 350 V	Communication Systems Telecommunications Test Equipment & Measurement
JAE Electronics SRCN1A25-16P	-25 °C	85 °C	Metal	Nickel	Backshell Cable Clamp	Aluminum Alloy Nickel	Male Pins Receptacle		17 mm	0.669 in	Silver	Plastic	Silver	10 A	N	Free Hanging (In-Line)	Copper Alloy	UL94 V-0	Aluminum Alloy			250 VAC 350 V	Communication Systems Telecommunications Test Equipment & Measurement	25-16	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	56	$ 12.60

Description

General part information

SRCN1A25 Series

24 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Circular Connectors

Datasheet
