TMB-E9FS-1S1

Active

CarlisleIT

2.92(F)STR,EL,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

2.92(F)STR,EL,SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

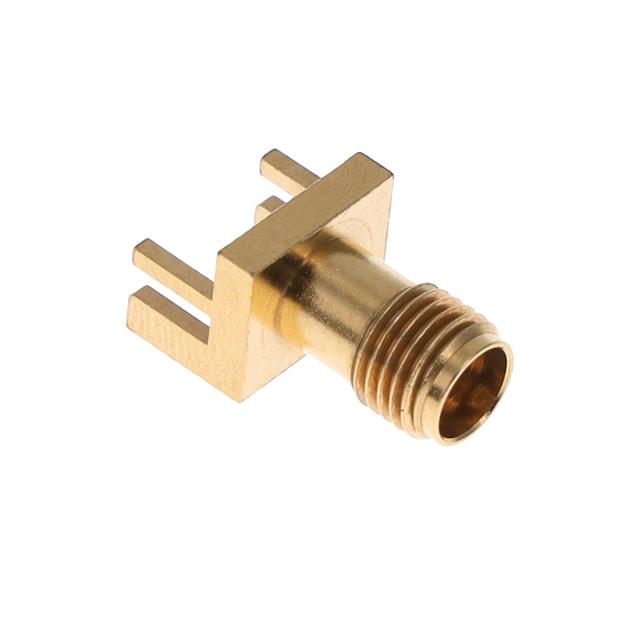

2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TMB-E9FS-1S1	TMB-E9 Series

Body Finish	Gold	Gold, White Bronze
Body Material	Brass	Brass, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	2.92 mm	2.92 mm
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder, Compression
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Features	-	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	40 GHz	40 GHz
Housing Color	Gold	Gold, Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.6 dB	0.2 - 0.6 dB
Mating Cycles	500	500
Mounting Type	Board Edge, End Launch	Board Edge, End Launch
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -55 ░C
Shield Termination	Solder	Solder, Screw
Voltage Rating	400 V	400 V

2.92(F)STR,EL,SOLDER

Part	Connector Style	Shield Termination	Mounting Type	Connector Type	Insertion Loss	Number of Ports	Mating Cycles	Body Material	Frequency - Max [Max]	Contact Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Impedance	Center Contact Material	Voltage Rating	Center Contact Plating	Features	Dielectric Material
CarlisleIT TMB-E9FS-1S1	2.92 mm	Solder	Board Edge, End Launch	Female Socket, Jack	0.6 dB	1	500	Brass	40 GHz	Solder	Gold	-65 ░C	165 °C	Gold	50 Ohms	Beryllium Copper	400 V	Gold
CarlisleIT TMB-E9F2-1L1	2.92 mm	Screw	Board Edge, End Launch	Female Socket, Jack	0.2 dB	1	500	Stainless Steel	40 GHz	Compression		-65 ░C	165 °C	Silver	50 Ohms	Beryllium Copper	400 V	Gold	Field Replaceable, For Hermetically Sealed Pin
CarlisleIT TMB-E9FS-1ST	2.92 mm	Solder	Board Edge, End Launch	Female Socket, Jack	0.38 dB	1	500	Brass	40 GHz	Solder	White Bronze	-55 °C	85 °C	Silver	50 Ohms	Beryllium Copper	400 V			Polytetrafluoroethylene (PTFE)
