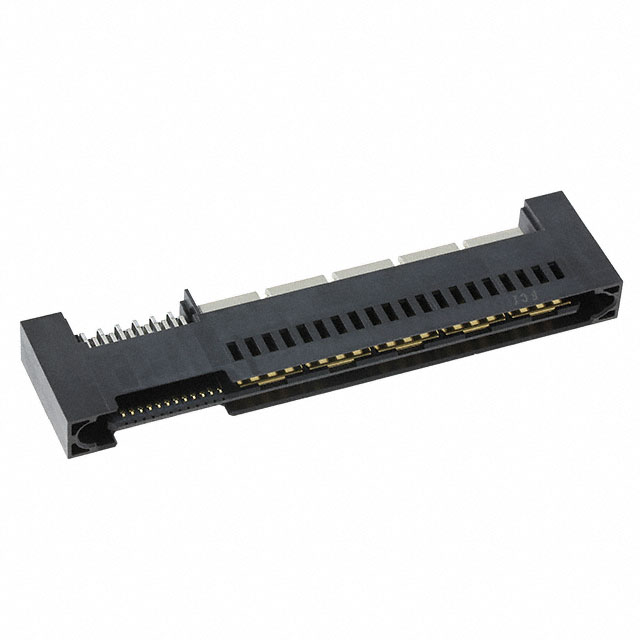

10124392-001LF

Active

Amphenol ICC (FCI)

CONN CARDEDGE MALE 64POS

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN CARDEDGE MALE 64POS

Technical Specifications

Parameters and characteristics for this part

Specification	10124392-001LF

Card Type	Fits Female Edgecards
Color	Black
Contact Material	Copper Alloy
Features	Mating Guide, Board Guide
Gender	Male
Material - Insulation	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	24
Number of Positions [custom]	40
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Read Out	Dual
Termination	Solder

Part	Read Out	Gender	Number of Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Card Type	Number of Positions [custom]	Number of Positions [custom]	Color	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Features
Amphenol ICC (FCI) 10124392-001LF	Dual	Male	2	Through Hole Right Angle	125 °C	-40 °C	Solder	Copper Alloy	Fits Female Edgecards	24	40	Black	Thermoplastic	20	12	Board Guide Mating Guide
Amphenol ICC (FCI) 10124392-11000LF	Dual	Male	2	Through Hole Right Angle	125 °C	-40 °C	Solder	Copper Alloy	Fits Female Edgecards	24	40	Black	Thermoplastic	20	12	Board Guide Mating Guide
Amphenol ICC (FCI) 10124392-003LF	Dual	Male	2	Through Hole Right Angle	125 °C	-40 °C	Solder	Copper Alloy	Fits Female Edgecards	24	40	Black	Thermoplastic	20	12	Board Guide Mating Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1008	$ 30.33

General part information

64 (24 + 40 Power) Position Male Connector Fits Female Edgecards Black
