Q-1T0140003108i

Active

Amphenol Custom Cable

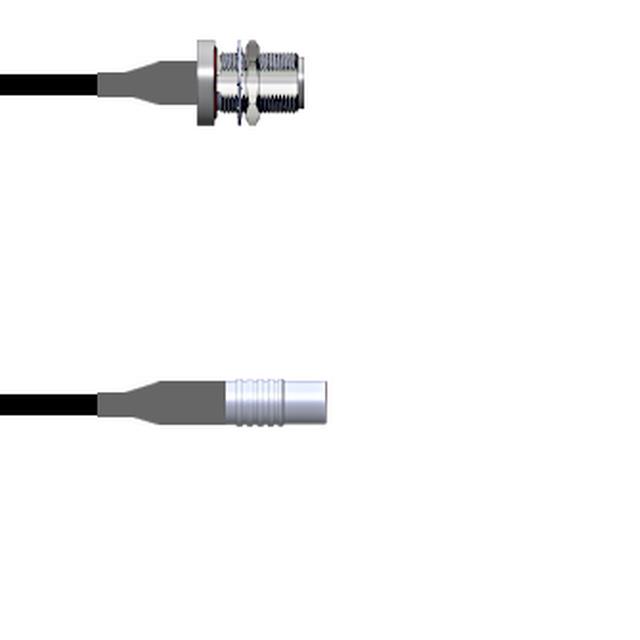

CBL ASSY MCX-NTYPE JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T0140003108i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T0140003108i

1st Connector	MCX Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1T0140 Series

Part	Frequency - Max [Max]	Length	Length	Length	Style	1st Contact Gender	2nd Connector	1st Connector Mounting Type	Overall Impedance	2nd Connector Mounting Type	Color	Features	1st Connector Mounting Feature	2nd Contact Gender	Cable Type	2nd Connector Mounting Feature	1st Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-1T01400031.5M	6000 MHz	59.1 in	4.9 ft	1.5 m	MCX to N-Type	Female	N-Type Jack	Panel Mount	50 Ohms	Panel Mount	Black	Shielded	Bulkhead - Front Side Nut	Female	RG-174	Bulkhead - Front Side Nut	MCX Jack
Amphenol Custom Cable Q-1T0140003006i	6000 MHz	6 in		152.4 mm	MCX to N-Type	Female	N-Type Jack	Panel Mount	50 Ohms	Panel Mount	Black	Shielded	Bulkhead - Front Side Nut	Female	RG-174	Bulkhead - Front Side Nut	MCX Jack
Amphenol Custom Cable Q-1T0140003048i	6000 MHz	48 in	4 ft	1200 mm	MCX to N-Type	Female	N-Type Jack	Panel Mount	50 Ohms	Panel Mount	Black	Shielded	Bulkhead - Front Side Nut	Female	RG-174	Bulkhead - Front Side Nut	MCX Jack
Amphenol Custom Cable Q-1T0140003108i	6000 MHz	108 in	9 ft	2.7 m	MCX to N-Type	Female	N-Type Jack	Panel Mount	50 Ohms	Panel Mount	Black	Shielded	Bulkhead - Front Side Nut	Female	RG-174	Bulkhead - Front Side Nut	MCX Jack
Amphenol Custom Cable Q-1T0140005.25M	6000 MHz				MCX to N-Type	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount	Copper	Shielded		Female	RG-316	Bulkhead - Front Side Nut	MCX Jack	9.843 "	250 mm
Amphenol Custom Cable Q-1T0140005024i	6000 MHz	24 "		609.6 mm	MCX to N-Type	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount	Copper	Shielded		Female	RG-316	Bulkhead - Front Side Nut	MCX Jack
Amphenol Custom Cable Q-1T0140005108i	6000 MHz	108 in	9 ft	2.7 m	MCX to N-Type	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount	Copper	Shielded		Female	RG-316	Bulkhead - Front Side Nut	MCX Jack
Amphenol Custom Cable Q-1T0140003001M	6000 MHz	39.4 in	3.3 ft	1 m	MCX to N-Type	Female	N-Type Jack	Panel Mount	50 Ohms	Panel Mount	Black	Shielded	Bulkhead - Front Side Nut	Female	RG-174	Bulkhead - Front Side Nut	MCX Jack
Amphenol Custom Cable Q-1T01400050.5M	6000 MHz	19.69 "		50 cm	MCX to N-Type	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount	Copper	Shielded		Female	RG-316	Bulkhead - Front Side Nut	MCX Jack
Amphenol Custom Cable Q-1T01400032.5M	6000 MHz	98.4 in	8.2 '	2.5 m	MCX to N-Type	Female	N-Type Jack	Panel Mount	50 Ohms	Panel Mount	Black	Shielded	Bulkhead - Front Side Nut	Female	RG-174	Bulkhead - Front Side Nut	MCX Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 116.34
		25	$ 114.11
		50	$ 111.88
		100	$ 109.65
		250	$ 107.41

Description

General part information

Q-1T0140 Series

Cable Assembly Coaxial MCX to N-Type RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
