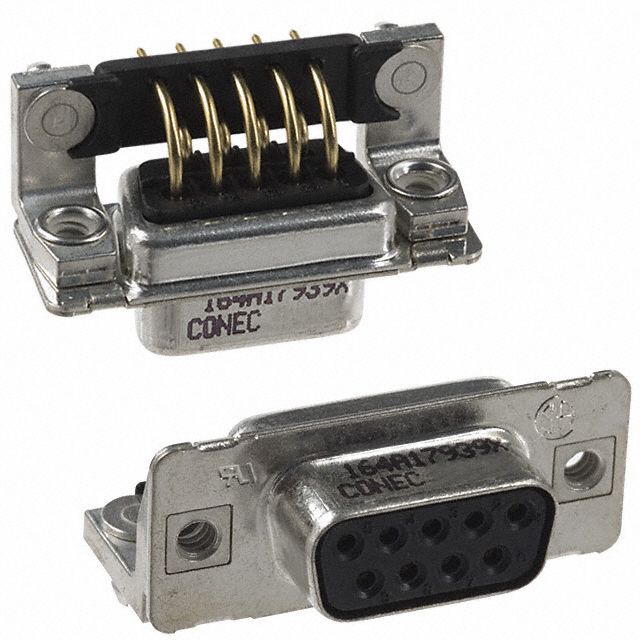

164A17939X

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A17939X

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A17939X

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	125 VDC

164A179 Series

Part	Contact Finish Thickness	Connector Style	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Finish	Contact Type	Number of Rows	Dielectric Material	Voltage Rating	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Contact Material	Number of Positions	Connector Type	Current Rating (Amps)	Termination	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Shell Size, Connector Layout
Amphenol CONEC 164A17939X	Flash	D-Sub	UL94 V-0	-55 °C	125 °C	Housing/Shell (4-40)	Gold	Signal	2	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Through Hole Right Angle	DE E	1	Black	Copper Alloy	9	Receptacle Female Sockets	7.5 A	Solder	0.283 in	7.2 mm
Amphenol CONEC 164A17969X	Flash	D-Sub	UL94 V-0	-55 °C	125 °C	Housing/Shell (4-40)	Gold	Signal	2	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Through Hole Right Angle			Black	Copper Alloy	37	Receptacle Female Sockets	7.5 A	Solder	0.283 in	7.2 mm	4 (DC C)
Amphenol CONEC 164A17979X	Flash	D-Sub	UL94 V-0	-55 °C	125 °C	Housing/Shell (M3)	Gold	Signal	2	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Board Edge Right Angle Through Hole	DE E	1	Black	Copper Alloy	9	Receptacle Female Sockets	7.5 A	Solder	0.283 in	7.2 mm
Amphenol CONEC 164A17949X	Flash	D-Sub	UL94 V-0	-55 °C	125 °C	Housing/Shell (4-40)	Gold	Signal	2	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Through Hole Right Angle			Black	Copper Alloy	15	Receptacle Female Sockets	7.5 A	Solder	0.283 in	7.2 mm		2
Amphenol CONEC 164A17989X	Flash	D-Sub	UL94 V-0	-55 °C	125 °C	Housing/Shell (M3)	Gold	Signal	2	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Board Edge Right Angle Through Hole			Black	Copper Alloy	15	Receptacle Female Sockets	7.5 A	Solder	0.283 in	7.2 mm		2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.59
		10	$ 14.31
		25	$ 12.95
		40	$ 12.31
		80	$ 11.45
		230	$ 10.29
		440	$ 9.66
		945	$ 8.99

Description

General part information

164A179 Series

9 Position D-Sub Receptacle, Female Sockets Connector
