1888653-3
ActiveTE Connectivity AMP Connectors

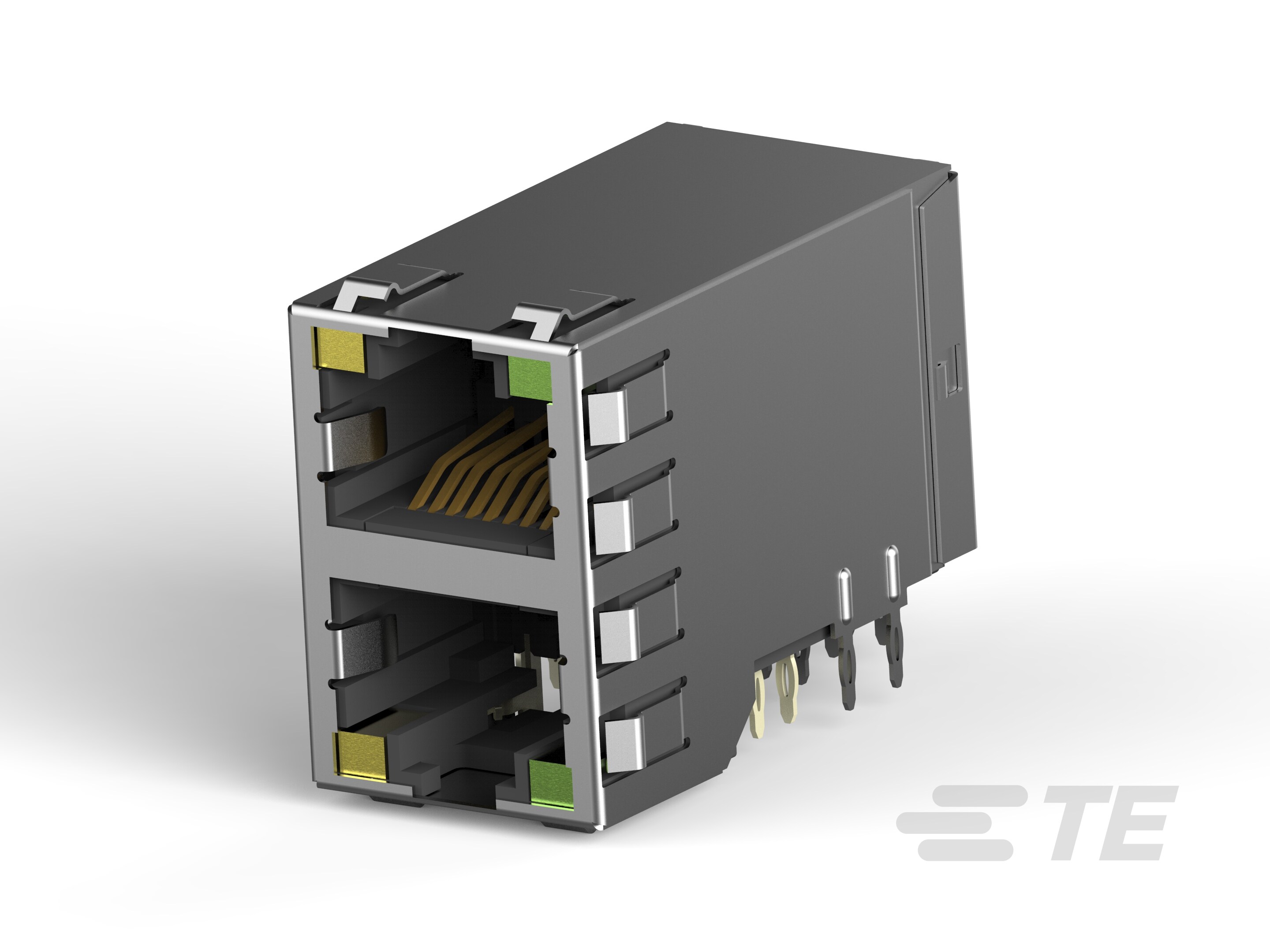

CONN MOD JACK 8P8C R/A SHIELDED
1888653-3
ActiveTE Connectivity AMP Connectors
CONN MOD JACK 8P8C R/A SHIELDED
Description
General part information
1888653 Series
RJ45 Connector, Multiple Ports, 2 x 1, Jack, Shielded, Cat 5e, Standard - Latch Down, 8 Position, OEG Miniature Relay PCF
Technical Specifications
Parameters and characteristics for this part
| Specification | 1888653-3 |
|---|---|
| Connector Type | Jack, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | PBT, Polybutylene Terephthalate, Polyester |
| LED Color | Yellow - Green |
| Mounting Type | Through Hole, Panel Mount, Board Edge |
| Number of Contacts | 8 |
| Number of Ports | 2 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Ratings | Cat5 |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down, Up |
| Termination | Press-Fit |
