796741-3

Active

TE Connectivity AMP Connectors

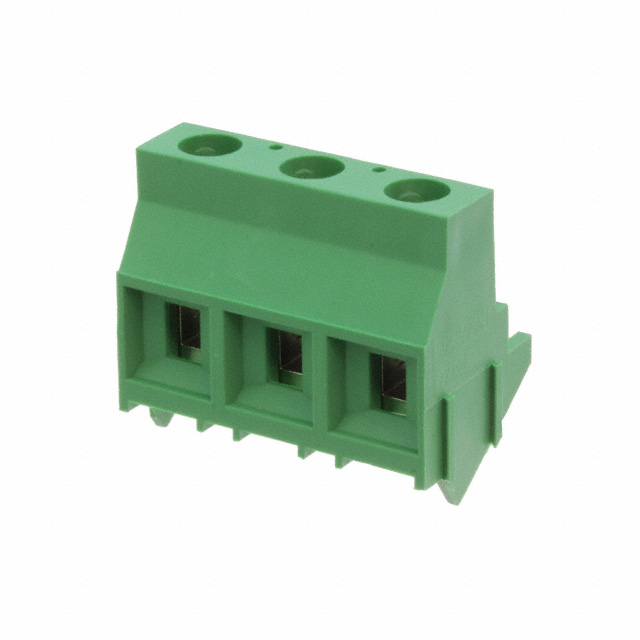

TERM BLOCK 3POS 35DEG 9.53MM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLOCK 3POS 35DEG 9.53MM PCB

Technical Specifications

Parameters and characteristics for this part

TERM BLOCK 3POS 35DEG 9.53MM PCB

Part	Mounting Type	Torque - Screw	Torque - Screw	Screw Thread	Features	Current	Mating Orientation	Mating Orientation	Screw Material - Plating	Wire Termination	Pitch [x]	Pitch [x]	Positions Per Level	Voltage	Number of Levels	Color	Wire Gauge [Max]	Wire Gauge [Min]	Clamp Material - Plating
TE Connectivity AMP Connectors 796741-3	Through Hole	0.79 Nm	7 Lb-In	M3	Interlocking (Side)	30 A	35 °	145 °	Brass - Nickel Plated	Screw - Rising Cage Clamp	9.53 mm	0.375 in	3	600 V	1	Green	24 AWG	10 AWG	Brass - Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.375" (9.53mm) Through Hole
