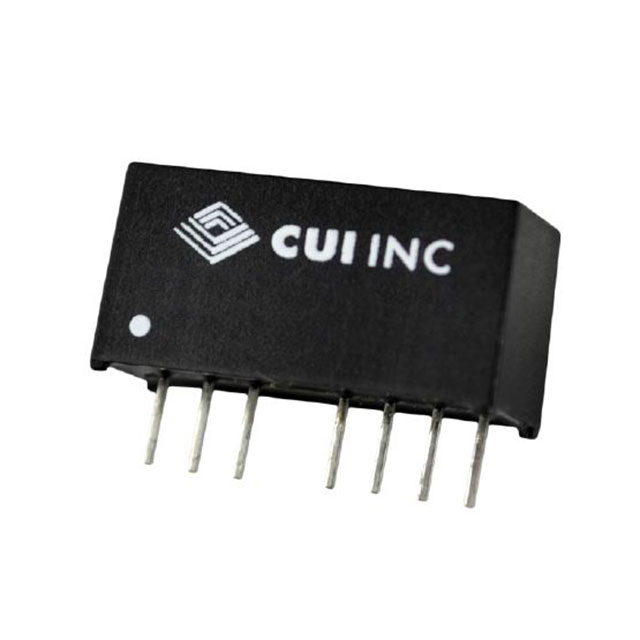

PDQ2-D24-D15-S

Active

CUI Inc.

DC DC CONVERTER +/-15V 2W

Search across all available documentation for this part.

Active

CUI Inc.

DC DC CONVERTER +/-15V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Applications	Approval Agency	Number of Outputs	Power (Watts)	Type	Voltage - Output 2	Voltage - Output 1	Package / Case	Package / Case	Voltage - Isolation	Mounting Type	Control Features	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Standard Number	Voltage - Input (Max) [Max]	Features	Current - Output (Max) [Max]
CUI Inc. PDQ2-D24-D15-S	18 V	ITE (Commercial)	EN	2	2 W	Isolated Module	-15 V	15 V	8-SIP Module	7 Leads	1.5 kV	Through Hole	Active Low Enable	84 %	100 °C	-40 °C	67 mA	67 mA	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	55032 Class A	36 V	OCP Remote On/Off SCP
CUI Inc. PDQ2-D24-S12-S	18 V	ITE (Commercial)	EN	1	2 W	Isolated Module		12 V	8-SIP Module	7 Leads	1.5 kV	Through Hole	Active Low Enable		100 °C	-40 °C			0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	55032 Class A	36 V	OCP Remote On/Off SCP	167 mA
CUI Inc. PDQ2-D24-S3-S	18 V	ITE (Commercial)	EN	1	2 W	Isolated Module		3.3 V	8-SIP Module	7 Leads	1.5 kV	Through Hole	Active Low Enable	79 %	100 °C	-40 °C			0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	55032 Class A	36 V	OCP Remote On/Off SCP	500 mA
