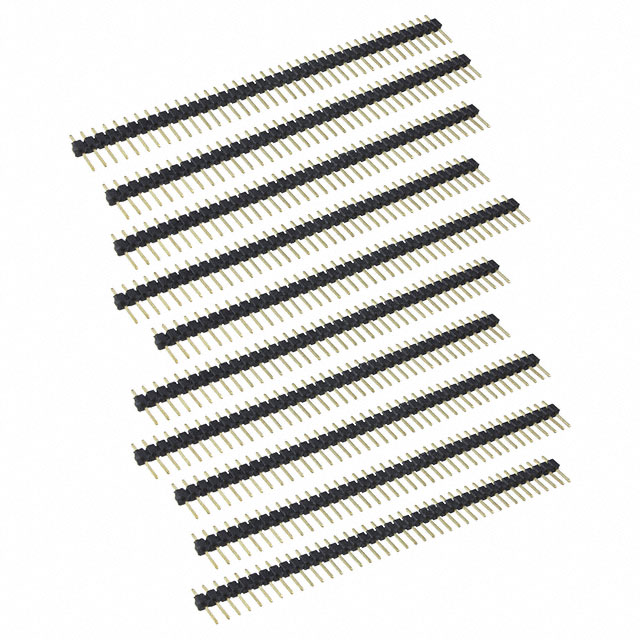

Specification	920-0011-01

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Mating	0.24 in
Contact Length - Post	0.118 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.098 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	0.457 in
Pitch - Mating	0.1 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

920-0011 Series

Part	Connector Type	Contact Length - Mating	Contact Shape	Material Flammability Rating	Pitch - Mating	Current Rating	Contact Material	Number of Rows	Contact Finish - Post	Number of Positions	Contact Type	Number of Positions Loaded	Shrouding	Insulation Color	Overall Contact Length	Insulation Height	Termination	Style	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Length - Post	Contact Finish - Mating	Mounting Type	Insulation Material
Schmartboard, Inc. 920-0011-01	Breakaway Header	0.24 in	Square	UL94 V-0	0.1 in	3 A	Brass	1	Gold	40	Male Pin	All	Unshrouded	Black	0.457 in	0.098 in	Solder	Board	Push-Pull	125 °C	-40 °C	0.118 in	Gold	Through Hole	Polybutylene Terephthalate (PBT)
