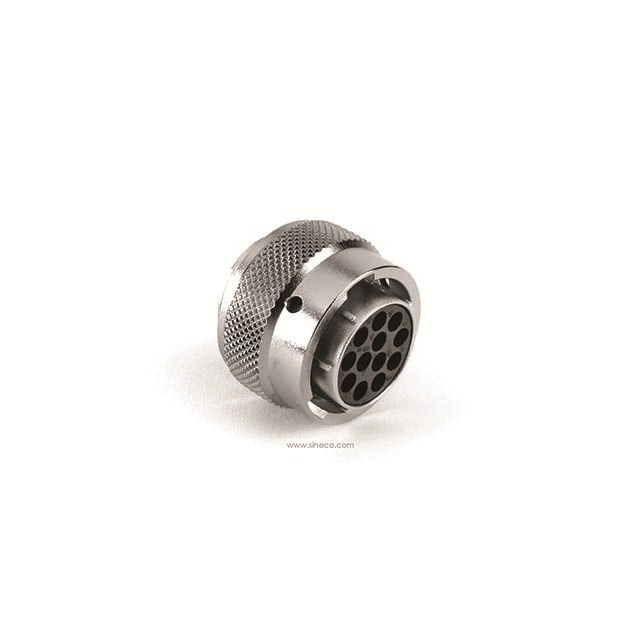

Specification	RT061412SNH03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Includes	Gasket, Connector, O-Ring
Includes Total Count	3 pcs
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	12 mm
Shielding	Shielded
Type	For Female Sockets

RT061412 Series

Part	Housing Color	Fastening Type	Mounting Type	Number of Positions	Type	Contact Size	Shell Material	Material Flammability Rating	Contact Type	Shell Finish	Insert Material	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Note	Includes	Includes Total Count	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Features	Connector Type	Contact Shape	Shell Size - Insert Width	Shell Size - Insert Length	Cable Opening (Max)	Cable Opening (Min)	Contact Finish - Mating	Primary Material	Contact Material	Current Rating	Voltage Rating	Applications	Contact Finish Thickness - Mating	Termination	Color	Plating	Backshell Material	Voltage Rating (Type)
McGill Microwave Systems RT061412SNH03	Silver	Bayonet Lock	Free Hanging (In-Line)	12	For Female Sockets	16 S	Zinc Alloy	UL94 V-0	Crimp	Nickel	Thermoplastic	N (Normal)	Dust Tight Waterproof	IP67	Contacts Not Included	Connector Gasket O-Ring	3 pcs	Shielded	125 °C	-40 °C	Coupling Nut	Plug Housing	Circular	12 mm	14 mm
McGill Microwave Systems RT061412PNHEC03R	Silver	Bayonet Lock	Free Hanging (In-Line)	12	For Male Pins	16 S	Zinc Alloy	UL94 V-0	Crimp	Nickel	Thermoplastic	N (Normal)	Dust Tight Waterproof	IP67	Contacts Not Included			Shielded	125 °C	-40 °C	Backshell Coupling Nut	Plug Housing	Circular	12 mm	14 mm

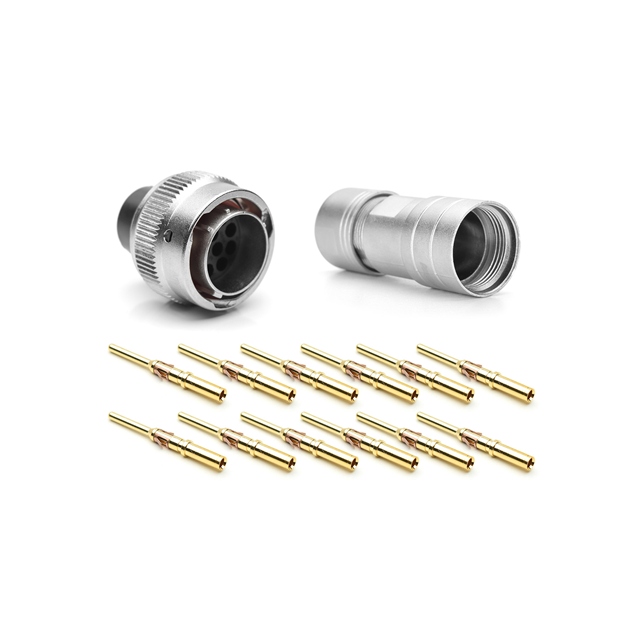

McGill Microwave Systems RT061412PNH03SS-K		Bayonet Lock	Free Hanging (In-Line)	12			Zinc Die Cast	UL94 V-0		Nickel	Nylon 6/6 PA66 Polyamide	N (Normal)	Dust Tight Water Resistant Waterproof	IP67 IP69K				Shielded	105 °C	-40 °C	Backshell Coupling Nut	Male Pins Plug		12 mm	14 mm	0.394 in	0.256 in	Gold	Metal	Brass	13 A	250 V	Aerospace Automation Industrial Telecom Transportation	Flash	Crimp	Silver	Nickel	Zinc Die Cast
McGill Microwave Systems RT061412SNHEC	Silver	Bayonet Lock	Free Hanging (In-Line)	12	For Female Sockets	16 S	Zinc Alloy	UL94 V-0	Crimp	Nickel	Thermoplastic	N (Normal)	Dust Tight Waterproof	IP67	Contacts Not Included	Backshell Connector O-Ring Seal	4 pcs	Shielded	105 °C	-40 °C	Backshell Coupling Nut	Plug Housing	Circular	12 mm	14 mm
McGill Microwave Systems RT061412PNHECR

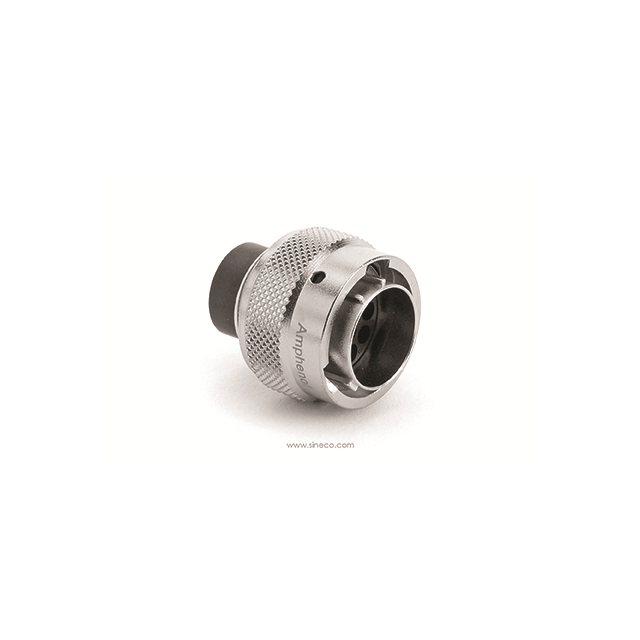

McGill Microwave Systems RT061412PNH03	Silver	Bayonet Lock	Free Hanging (In-Line)	12	For Male Pins	16 S	Zinc Alloy	UL94 V-0	Crimp	Nickel	Thermoplastic	N (Normal)	Dust Tight Waterproof	IP67	Contacts Not Included	Connector Gasket O-Ring	3 pcs	Shielded	125 °C	-40 °C	Coupling Nut	Plug Housing	Circular	12 mm	14 mm
McGill Microwave Systems RT061412SNH-K		Bayonet Lock	Free Hanging (In-Line)	12			Zinc Die Cast			Nickel		N (Normal)	Dust Tight Waterproof	IP67					105 °C	-40 °C		Female Sockets Plug		12 mm	14 mm			Gold	Metal		13 A	250 V		Flash	Crimp	Silver			DC
McGill Microwave Systems RT061412SNHEC03R	Silver	Bayonet Lock	Free Hanging (In-Line)	12	For Female Sockets	16 S	Zinc Alloy	UL94 V-0	Crimp	Nickel	Thermoplastic	N (Normal)	Dust Tight Waterproof	IP67	Contacts Not Included			Shielded	125 °C	-40 °C	Backshell Coupling Nut	Plug Housing	Circular	12 mm	14 mm

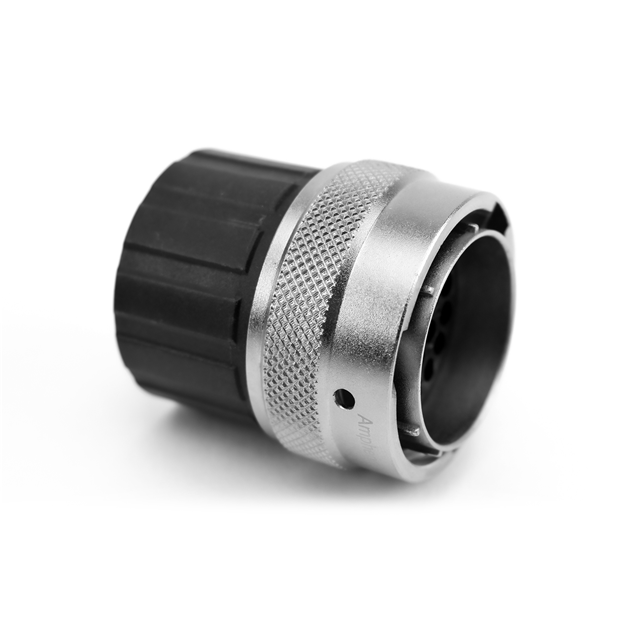

McGill Microwave Systems RT061412PNHEC	Silver	Bayonet Lock	Free Hanging (In-Line)	12	For Male Pins	16 S	Zinc Alloy	UL94 V-0	Crimp	Nickel	Thermoplastic	N (Normal)	Dust Tight Waterproof	IP67	Contacts Not Included			Shielded	105 °C	-40 °C	Backshell Coupling Nut	Plug Housing	Circular	12 mm	14 mm
McGill Microwave Systems RT061412SNH03SS-K		Bayonet Lock	Free Hanging (In-Line)	12			Zinc Die Cast	UL94 V-0		Nickel	Nylon 6/6 PA66 Polyamide	N (Normal)	Dust Tight Water Resistant Waterproof	IP67 IP69K				Shielded	105 °C	-40 °C	Backshell Coupling Nut	Female Sockets Plug		12 mm	14 mm	0.394 in	0.256 in	Gold	Metal	Brass	13 A	250 V	Aerospace Automation Industrial Telecom Transportation	Flash	Crimp	Silver	Nickel	Zinc Die Cast
