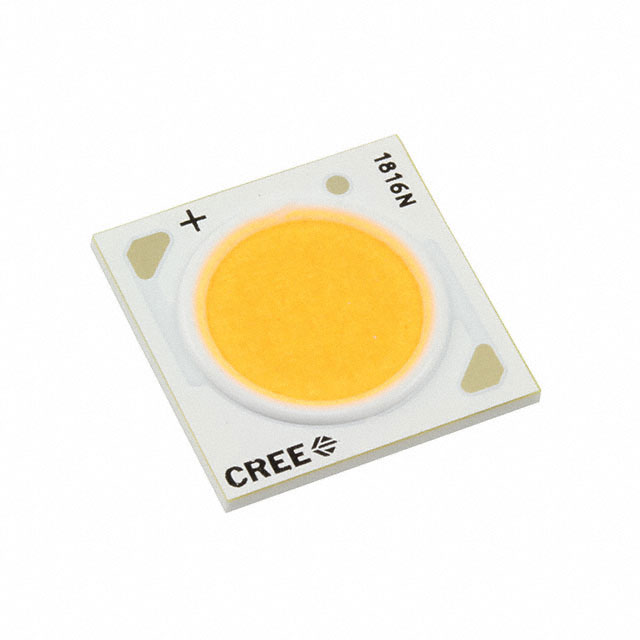

CXB1816-0000-000N0UP440G

Active

Cree LED

XLAMP CXA GEN 2 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXB1816-0000-000N0UP440G

Active

Cree LED

XLAMP CXA GEN 2 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXB1816-0000-000N0UP440G

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	900 mA
Current - Test	450 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	12 mm
Lumens/Watt @ Current - Test	129 lm/W
Luminous Flux @ Current/Temperature	2033 lm
Size / Dimension [x]	17.85 mm
Size / Dimension [y]	17.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	35 V

CXB1816 Series

Part	Temperature - Test	Voltage - Forward (Vf) (Typ)	Lens Type	Light Emitting Surface (LES) [diameter]	Viewing Angle	Height [z]	Color	Lumens/Watt @ Current - Test	Current - Test	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Configuration	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Type	CRI (Color Rendering Index)	CCT (K)
Cree LED CXB1816-0000-000N0UN435G	85 °C	36 V	Flat	12 mm	115 °	1.7 mm	Warm White	109 lm/W	450 mA	900 mA	17.85 mm	17.85 mm	Square	1830 lm	1770 lm	1710 lm	Chip On Board (COB)	90	3500 K
Cree LED CXB1816-0000-000N0UP230G	85 °C	35 V	Flat	12 mm	115 °	1.7 mm	Warm White	121 lm/W	450 mA	900 mA	17.85 mm	17.85 mm	Square	1965 lm	1898 lm	1830 lm	Chip On Board (COB)	90	3000 K
Cree LED CXB1816-0000-000N0HP427G	85 °C	36 V	Flat	12 mm	115 °	1.7 mm	Warm White	125 lm/W	450 mA	900 mA	17.85 mm	17.85 mm	Square		2033 lm		Chip On Board (COB)	80	2700 K
Cree LED CXB1816-0000-000N0UP440G	85 °C	35 V	Flat	12 mm	115 °	1.7 mm	Neutral White	129 lm/W	450 mA	900 mA	17.85 mm	17.85 mm	Square		2033 lm		Chip On Board (COB)	90	4000 K
Cree LED CXB1816-0000-000N0HP227H	85 °C	36 V	Flat	12 mm	115 °	1.7 mm	Warm White	117 lm/W	450 mA	900 mA	17.85 mm	17.85 mm	Square	1965 lm	1898 lm	1830 lm	Chip On Board (COB)	80	2700 K
Cree LED CXB1816-0000-000N0HP440G	85 °C	36 V	Flat	12 mm	115 °	1.7 mm	Neutral White	125 lm/W	450 mA	900 mA	17.85 mm	17.85 mm	Square		2033 lm		Chip On Board (COB)	80	4000 K
Cree LED CXB1816-0000-00PN0U0A27G	85 °C	34.1 V	Flat	12 mm	115 °	1.7 mm	Warm White		450 mA	900 mA	17.85 mm	17.85 mm	Square				Chip On Board (COB)	90	2700 K
Cree LED CXB1816-0000-000N0HR257E	85 °C	35 V	Flat	12 mm	115 °	1.7 mm	Cool White	159 lm/W	450 mA	900 mA	17.85 mm	17.85 mm	Square	2600 lm	2510 lm	2420 lm	Chip On Board (COB)	80	5700 K
Cree LED CXB1816-0000-00PN0U0A31Q	85 °C	34.1 V	Flat	12 mm	115 °	1.7 mm	Warm White		450 mA	900 mA	17.85 mm	17.85 mm	Square				Chip On Board (COB)	90	3100 K
Cree LED CXB1816-0000-000N0HP227G	85 °C	36 V	Flat	12 mm	115 °	1.7 mm	Warm White	117 lm/W	450 mA	900 mA	17.85 mm	17.85 mm	Square	1965 lm	1898 lm	1830 lm	Chip On Board (COB)	80	2700 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 12.38
Newark	Each	100	$ 11.72
		250	$ 10.20
		500	$ 9.90

Description

General part information

CXB1816 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXB1816 White, Neutral Square
