KX14-50K5D-RE

Obsolete

JAE Electronics

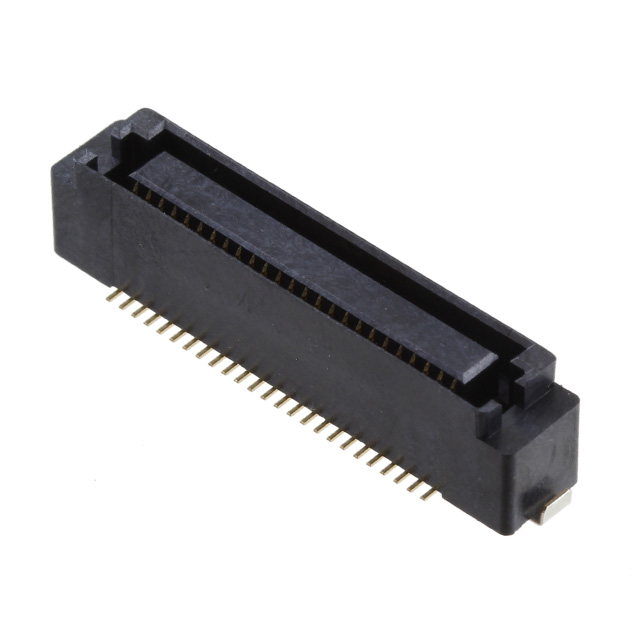

CONN RCPT 50POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX14-50K5D-RE

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	0.258 "
Height Above Board	6.55 mm
Mated Stacking Heights	9 mm, 7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Height Above Board	Height Above Board [z]	Contact Finish	Features	Pitch [x]	Pitch [x]	Connector Type	Height Above Board	Mated Stacking Heights
JAE Electronics KX14-50K8DE	Surface Mount	4 Áin	0.1 Ám	2	50	9.55 mm	0.376 in	Gold	Board Guide Solder Retention	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts
JAE Electronics KX14-50K5D-RE	Surface Mount	4 Áin	0.1 Ám	2	50	6.55 mm		Gold	Board Guide Solder Retention	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	0.258 "	7 mm 8 mm 9 mm
JAE Electronics KX14-50K5D-R-E1000E	Surface Mount	4 Áin	0.1 Ám	2	50	6.55 mm		Gold	Board Guide Solder Retention	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	0.258 "	7 mm 8 mm 9 mm
JAE Electronics KX14-50K5D3-E850-TE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
