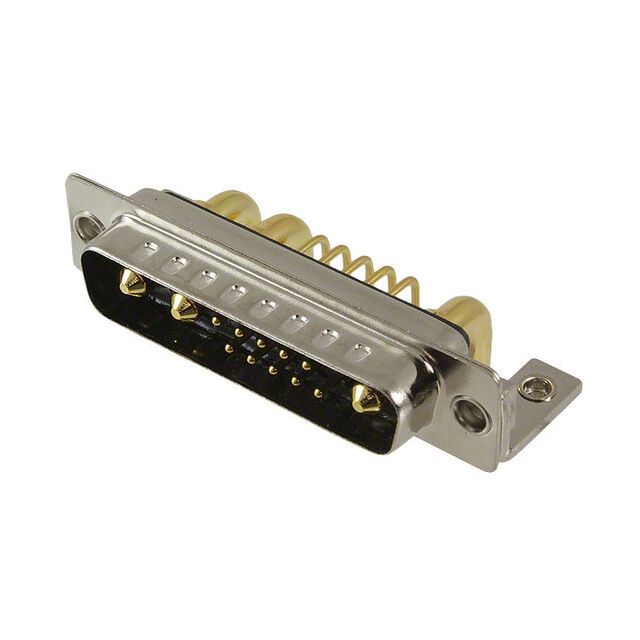

COMBINATION LAYOUT D SUB CONNECTOR, 40 AMP, SEAL-D 684S SERIES, DB-13W3, PLUG, 13 CONTACTS

Search across all available documentation for this part.

Active

MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, 40 AMP, SEAL-D 684S SERIES, DB-13W3, PLUG, 13 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	684S13W3103L461

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder

Part	Connector Style	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Positions [custom]	Number of Positions [custom]	Shell Material, Finish	Termination	Material Flammability Rating	Color	Connector Type	Contact Finish	Features	Ingress Protection	Current Rating (Amps)	Flange Feature	Contact Material	Contact Finish Thickness	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Rows	Backset Spacing	Backset Spacing	Number of Positions
MH Connectors 684S13W3103L461	Combo D-Sub	Board Edge Right Angle Through Hole	13C3 13W3 B DB	3	10	3	Nickel Plated Steel	Solder	UL94 V-0	Black	Male Pins Plug	Gold	Board Lock Grounding Indents Mounting Brackets	IP67 - Dust Tight Waterproof	5 A 40 A	Housing/Shell (4-40)	Copper Alloy	Flash	Signal and Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	2
MH Connectors 684S13W6103L461	Combo D-Sub	Board Edge Right Angle Through Hole	13W6 4 (DC C)			6	Nickel Plated Steel	Solder	UL94 V-0	Black	Male Pins Plug	Gold	Board Lock Grounding Indents Mounting Brackets	IP67 - Dust Tight Waterproof	5 A 40 A	Housing/Shell (4-40)	Copper Alloy	Flash	Signal and Power	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	2	9.4 mm	0.37 in	13

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
