Specification	2170330-1

Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Current Rating	0.7 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	8
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Pitch	0.098 in
Termination	Press-Fit
Voltage Rating	250 V

Z-PACK HM-Zd+ Series

Part	Current Rating	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Number of Rows	Number of Positions	Pitch	Mounting Type	Number of Columns	Contact Finish	Termination	Number of Positions Loaded	Contact Finish Thickness	Connector Type	Connector Usage	Features	Ground Contacts (Typical)	Signal Contacts (Typical)	Connector Style	Single Signal (Typical)
TE Connectivity AMP Connectors 2170330-1	0.7 A	250 V	105 °C	-65 °C	UL94 V-0	8	80	0.098 in	Through Hole	10	Gold	Press-Fit	All	30 µin	Header Male Pins
TE Connectivity AMP Connectors 2065769-1	600 mA	250 V	105 °C	-65 °C	UL94 V-0	4	60	0.098 in	Board Edge Right Angle Through Hole	10		Press-Fit	All		Female Sockets Receptacle	Daughtercard	Shielded	20	40	High Speed

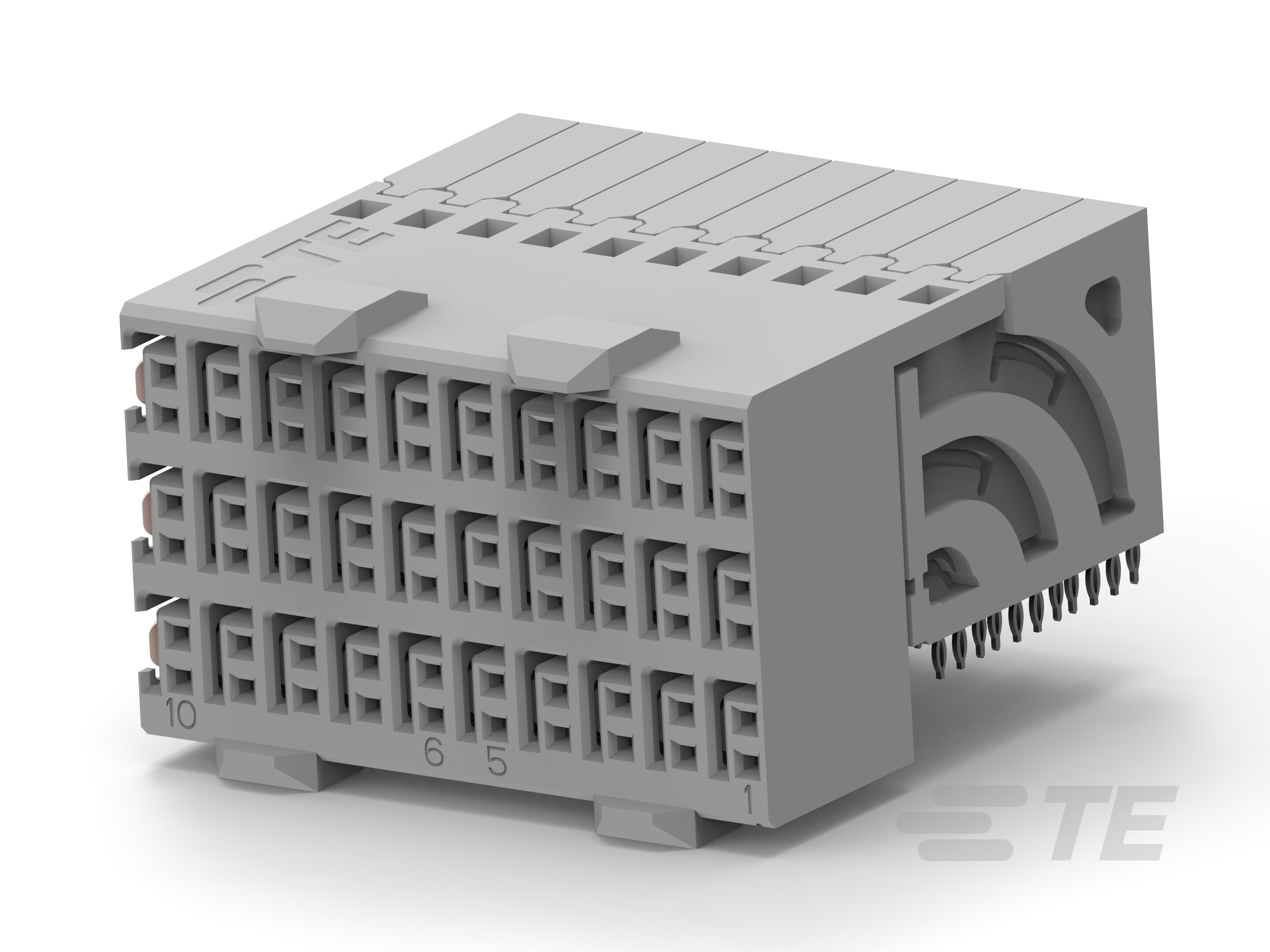

TE Connectivity AMP Connectors 2065883-1						6	90	0.098 in	Board Edge Right Angle Through Hole	10		Press-Fit	All		Female Sockets Receptacle	Daughtercard	Shielded	30	60	High Speed
TE Connectivity AMP Connectors 2170328-1						4	60	0.098 in	Through Hole	10		Press-Fit	All		Header Male Pins					High Speed
TE Connectivity AMP Connectors 2065657-1						8	120	0.098 in	Board Edge Right Angle Through Hole	10		Press-Fit	All		Female Sockets Receptacle	Backplane	Shielded	40		High Speed	80
