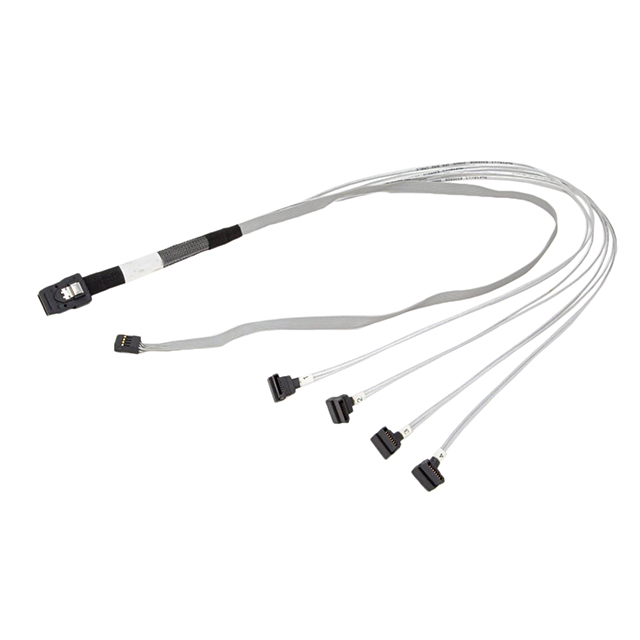

AMPH-874S-RT-SB-650
ActivePactech
AMPH MINISAS TO 4XSATA RA 650MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMPH-874S-RT-SB-650
ActivePactech
AMPH MINISAS TO 4XSATA RA 650MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AMPH-874S-RT-SB-650 | AMPH-874S Series |
|---|---|---|
| Cable Connectors | SATA Right Angle, miniSAS | miniSAS, SATA, SATA (4), MiniSAS Low Profile, SATA 4x, SATA Right Angle |
| Cable Connectors | 4 | 4 |
| Cable Type | Flat | Flat |
| Color | Black | Black |
| Connector Type | Plug to Receptacle | Plug to Receptacle, Plug to Receptacle (4) |
| Fastening Type | Push-Pull, Latch Lock | Latch Lock, Push-Pull |
| Features | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable, SATA Connectors, Amphenol SFF-8087 |
| Frequency - Max | - | 4.5 - 6 GHz |
| Gender | Male to Female | Male to Female |
| Length | 650 mm | 650 - 975 mm |
| Length | 2.13 ft | 2.13 - 3.2 ft |
| Length | - | 1.64 - 3.28 ft |
| Length | - | 0.75 - 875 mm |
| Number of Positions | 36, 7 | 7 - 36 |
| Number of Positions | 4 | 4 |
| Shielding | Shielded | Shielded |
| Usage | Internal | Internal |
| Wire Gauge | - | 30 AWG |
AMPH-874S Series
AMPH MINISAS TO 4X SATA 0.5M
| Part | Shielding | Connector Type | Gender | Number of Positions | Number of Positions | Wire Gauge | Cable Connectors | Usage | Features | Frequency - Max [Max] | Length [x] | Length [x] | Color | Cable Type | Fastening Type | Length | Length | Cable Connectors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pactech AMPH-874S-050 | Shielded | Plug to Receptacle | Male to Female | 7, 36 | 4 | 30 AWG | miniSAS, SATA | Internal | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable | 4.5 GHz | 1.64 ft | 500 mm | Black | Flat | Latch Lock | |||
Pactech AMPH-874S-050-NL | Shielded | Plug to Receptacle | Male to Female | 7, 36 | 4 | miniSAS, SATA (4) | Internal | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable | 1.64 ft | 500 mm | Black | Flat | Push-Pull | |||||
Pactech AMPH-874S26-075 | Shielded | Plug to Receptacle | Male to Female | 7, 36 | 4 | miniSAS, SATA (4) | Internal | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable | 2.46 ft | 0.75 m | Black | Flat | Latch Lock, Push-Pull | |||||
Pactech AMPH-874S-100 | Shielded | Plug to Receptacle | Male to Female | 7, 36 | 4 | miniSAS, SATA | Internal | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable | 3.28 ft | 1 m | Black | Flat | Latch Lock | |||||
Pactech AMPH-874S-STEP-950LP | Shielded | Plug to Receptacle | Male to Female | 7, 36 | 4 | 30 AWG | MiniSAS Low Profile, SATA 4x | Internal | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable | 4.5 GHz | Black | Flat | Latch Lock, Push-Pull | 950 mm | 3.12 ft | |||
Pactech AMPH-874S-STEP-925-LP | Shielded | Plug to Receptacle (4) | Male to Female | 7, 36 | 4 | 30 AWG | MiniSAS Low Profile, SATA 4x | Internal | 6Gbps SAS2.1, Amphenol SFF-8087, SATA Connectors | 6 Gbps | Black | Flat | Latch Lock, Push-Pull | |||||
Pactech AMPH-874S-STEP-575 | Shielded | Plug to Receptacle | Male to Female | 7, 36 | 4 | miniSAS, SATA (4) | Internal | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable | 1.89 ft | 575 mm | Black | Flat | Latch Lock | |||||
Pactech AMPH-874S-RT-SB-650 | Shielded | Plug to Receptacle | Male to Female | 7, 36 | 4 | miniSAS, SATA Right Angle | Internal | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable | Black | Flat | Latch Lock, Push-Pull | 650 mm | 2.13 ft | 4 | ||||
Pactech AMPH-874S-STEP-875 | Shielded | Plug to Receptacle | Male to Female | 7, 36 | 4 | miniSAS, SATA (4) | Internal | 6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable | 2.87 ft | 875 mm | Black | Flat | Latch Lock, Push-Pull | |||||
Pactech AMPH-874S-STEP-975-LP-A | Shielded | Plug to Receptacle (4) | Male to Female | 7, 36 | 4 | 30 AWG | MiniSAS Low Profile, SATA 4x | Internal | 6Gbps SAS2.1, Amphenol SFF-8087, SATA Connectors | 6 Gbps | Black | Flat | Latch Lock, Push-Pull | 975 mm | 3.2 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AMPH-874S Series
36, 7 (4) Position MiniSAS, SATA Right Angle (4) Plug to Receptacle 2.13' (650.00mm) Black Shielded
Documents
Technical documentation and resources
