C2534A.30.10

Active

Prysmian Group

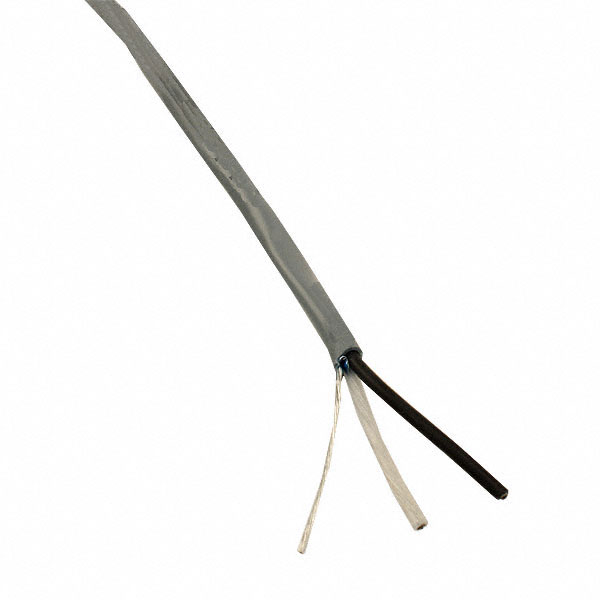

CABLE 2COND 18AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 18AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C2534A.30.10

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Usage	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Number of Conductors	Features	Shield Type	Shield Material	Voltage	Jacket (Insulation) Material	Wire Gauge	Conductor Insulation	Length [x]	Length [x]
Prysmian Group C2534A.30.10	Communication Control	1000 ft	304.8 m	0.02 in	0.508 mm	Multi-Conductor	Gray	5.11 mm	0.201 in	100 %	16	30 AWG	Copper Tinned	2	Drain Wire	Foil	Flexfoil®	300 V	Poly-Vinyl Chloride (PVC)	18 AWG	Polyethylene (PE)
Prysmian Group C2534A.41.10	Communication Control	1000 ft	15.24 m 304.8 m	0.02 in	0.508 mm	Multi-Conductor	Gray	5.11 mm	0.201 in	100 %	16	30 AWG	Copper Tinned	2	Drain Wire	Foil	Flexfoil®	300 V	Poly-Vinyl Chloride (PVC)	18 AWG	Polyethylene (PE)	50 ft
Prysmian Group C2534A.44.10	Communication Control	2500 ft	762 m	0.02 in	0.508 mm	Multi-Conductor	Gray	5.11 mm	0.201 in	100 %	16	30 AWG	Copper Tinned	2	Drain Wire	Foil	Flexfoil®	300 V	Poly-Vinyl Chloride (PVC)	18 AWG	Polyethylene (PE)
Prysmian Group C2534A.38.10	Communication Control			0.02 in	0.508 mm	Multi-Conductor	Gray	5.11 mm	0.201 in	100 %	16	30 AWG	Copper Tinned	2	Drain Wire	Foil	Flexfoil®	300 V	Poly-Vinyl Chloride (PVC)	18 AWG	Polyethylene (PE)	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 18 AWG Foil 1000.0' (304.8m)
