NMXS0505SOC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

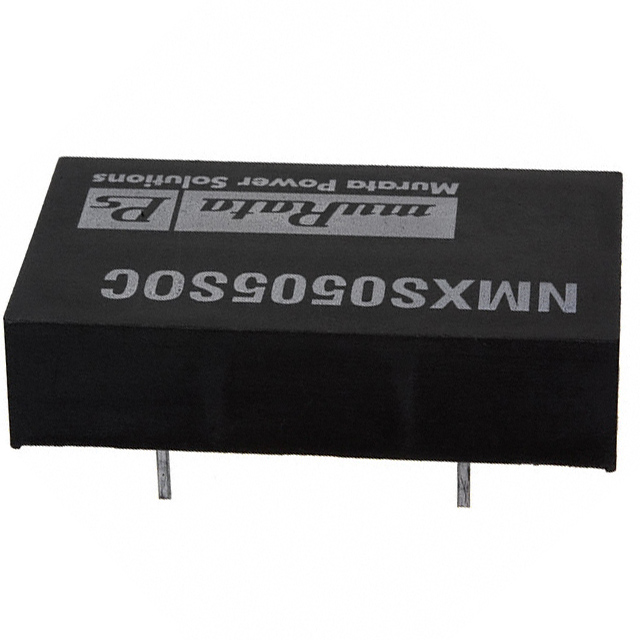

NMXS0505SOC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NMXS0505SOC | NMXS05 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A | 1 - 470 mA |
| Efficiency | 65 % | 65 - 75 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 5-DIP Module | 5-DIP Module |
| Power (Watts) | 5 W | 5 W |
| Size / Dimension [x] | 40.4 mm | 25.1 - 40.4 mm |
| Size / Dimension [x] | 1.59 in | 0.99 - 1.59 in |
| Size / Dimension [y] | 23.6 mm | 23.6 mm |
| Size / Dimension [y] | 0.93 in | 0.93 in |
| Size / Dimension [z] | 9.9 mm | 9.9 mm |
| Size / Dimension [z] | 0.39 in | 0.39 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 5 V | 5 - 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NMXS05 Series
DC DC CONVERTER 15V 5W
| Part | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Efficiency | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Input (Max) [Max] | Voltage - Isolation | Voltage - Output 1 | Current - Output (Max) [Max] | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NMXS0515UC | 5-DIP Module | 25.1 mm | 23.6 mm | 0.99 in | 0.93 in | 0.39 in | 9.9 mm | ITE (Commercial) | 70 °C | 0 °C | 5 W | 75 % | 4.5 V | 1 | 5.5 V | 1000 V | 15 V | 333 mA | Isolated Module | Through Hole |
Murata Power Solutions Inc. NMXS0512UC | 5-DIP Module | 25.1 mm | 23.6 mm | 0.99 in | 0.93 in | 0.39 in | 9.9 mm | ITE (Commercial) | 70 °C | 0 °C | 5 W | 75 % | 4.5 V | 1 | 5.5 V | 1000 V | 12 V | Isolated Module | Through Hole | |
Murata Power Solutions Inc. NMXS0505UC | 5-DIP Module | 25.1 mm | 23.6 mm | 0.99 in | 0.93 in | 0.39 in | 9.9 mm | ITE (Commercial) | 70 °C | 0 °C | 5 W | 75 % | 4.5 V | 1 | 5.5 V | 1000 V | 5 V | 1 A | Isolated Module | Through Hole |
Murata Power Solutions Inc. NMXS0505UC | ||||||||||||||||||||
Murata Power Solutions Inc. NMXS0505SOC | 5-DIP Module | 40.4 mm | 23.6 mm | 1.59 in | 0.93 in | 0.39 in | 9.9 mm | ITE (Commercial) | 70 °C | 0 °C | 5 W | 65 % | 4.5 V | 1 | 5.5 V | 1000 V | 5 V | 1 A | Isolated Module | Through Hole |
Murata Power Solutions Inc. NMXS0512SOC | 5-DIP Module | 40.4 mm | 23.6 mm | 1.59 in | 0.93 in | 0.39 in | 9.9 mm | ITE (Commercial) | 70 °C | 0 °C | 5 W | 65 % | 4.5 V | 1 | 5.5 V | 1000 V | 12 V | 470 mA | Isolated Module | Through Hole |
Description
General part information
NMXS05 Series
Isolated Module DC DC Converter 1 Output 5V 1A 4.5V - 5.5V Input
Documents
Technical documentation and resources
