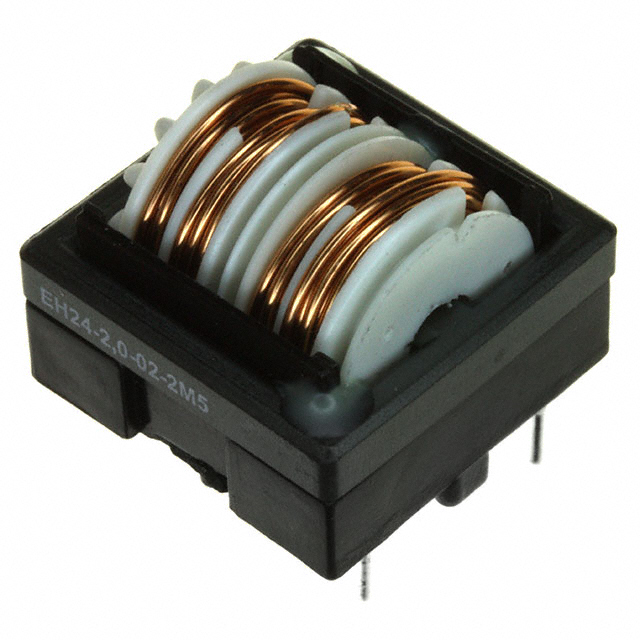

EH24-2.0-02-2M5

Active

Schaffner EMC Inc.

CMC 2.5MH 2A 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 2.5MH 2A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EH24-2.0-02-2M5

Current Rating (Max) [Max]	2 A
DC Resistance (DCR) (Max) [Max]	62 mOhm
Filter Type	Power Line
Height (Max)	0.827 in
Height (Max)	21 mm
Inductance @ Frequency	400 Hz, 2.5 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Horizontal
Package / Case	4 Lead
Size / Dimension [x]	24 mm
Size / Dimension [x]	0.945 in
Size / Dimension [y]	0.945 in
Size / Dimension [y]	24 mm
Voltage Rating - AC	250 V

CMC 2.5MH 2A 2LN TH

Part	Operating Temperature [custom]	Inductance @ Frequency	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Current Rating (Max) [Max]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Mounting Type	Height (Max)	Height (Max)	Filter Type
Schaffner EMC Inc. EH24-2.0-02-2M5	-25 °C, 100 °C	2.5 mH, 400 Hz	Horizontal	4 Lead	24 mm	0.945 in	24 mm	0.945 in	250 V	2 A	2	62 mOhm	Through Hole	0.827 in	21 mm	Power Line

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 1.68

General part information

2.5 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 2A DCR 62mOhm (Typ)
