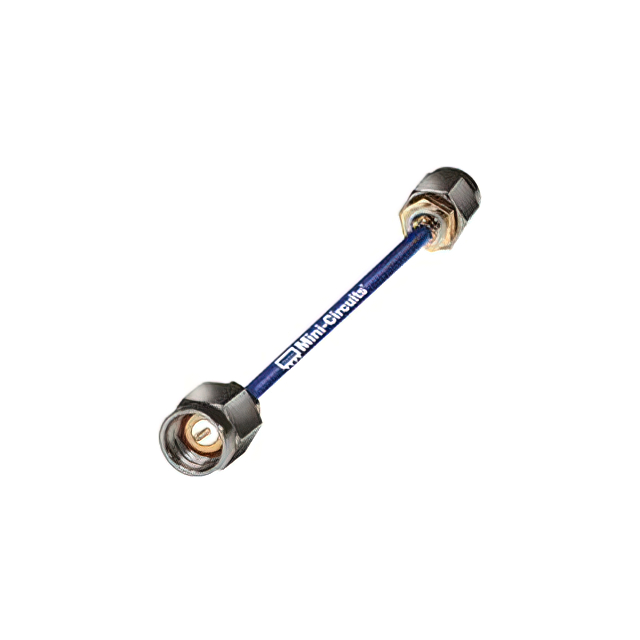

086-4SM+

Active

MINI-CIRCUITS

RF CABLE ASSEMBLIES HAND-FLEX INTERCONNECT, 0.086" CENTER DIAMETER, 18.0 GHZ

Search across all available documentation for this part.

Active

MINI-CIRCUITS

RF CABLE ASSEMBLIES HAND-FLEX INTERCONNECT, 0.086" CENTER DIAMETER, 18.0 GHZ

Technical Specifications

Parameters and characteristics commom to parts in this series

CBL ASSY 2.92MM PLUG TO PLUG 4"

Part	Frequency - Max [Max]	1st Connector	2nd Connector	Color	1st Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	2nd Contact Gender	Style [Min]	Style [Max]	Cable Type	Cable Type	Length	Length	Overall Impedance	Style	2nd Connector
MINI-CIRCUITS 086-4KM+	40 GHz	2.92mm Plug	2.92 mm	Blue	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	85 °C	-55 °C	Male	2.92 mm	2.92 mm	Hand Formable	0.086	4 in	101.6 mm	50 Ohms
MINI-CIRCUITS 086-4SM+	18 GHz	SMA Plug		Blue	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	105 ░C	-55 °C	Male			Hand Formable	0.086	4 in	101.6 mm	50 Ohms	SMA to SMA	SMA Plug
MINI-CIRCUITS 086-4SMR+	18 GHz	Right Angle, SMA Plug		Blue	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	105 ░C	-55 °C	Male			Hand Formable	0.086	4 in	101.6 mm	50 Ohms	SMA to SMA	SMA Plug, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 4.000" (101.60mm)
