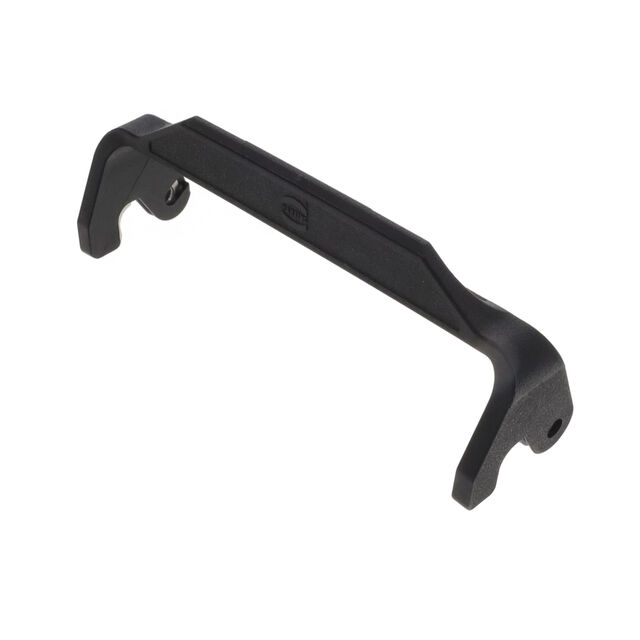

| Accessory Type | Locking Latch | Locking Latch, Grommet, Flange Adapter, Cable Gland, Gasket, Seal, PE Terminal, Ground Terminal, Blanking Plug, Bracket, Cable Seal, Increasing Adapter, Fixing Screw, Clamp, Strain Relief |
| Color | - | Silver, Black, Gray |
| Features | - | PG36 Thread, PG16 Thread, PG13.5 Thread, PG29 Thread, PG11 Thread, PG21 Thread |
| For Use With/Related Products | Han Easy-Lock® 24B Housings | Han Easy-Lock® 16A Housings, Han Easy-Lock® 24B Housings, Grip Frame, Han® Housings, Han® 16B Housings, Cable Glands, Han-Modular® 24B Housings, Han® 24B Bases, Han® 32B Housings, Han Easy-Lock® 6B Housings, Han® 16B Bases, Han® and Han® M 6B Housings, Flat Cables, Han® 10B Housings, Han® 6B, 24B Inserts, 10B, 16B, Han Easy-Lock® 10A Housings, 24B Housings, Han® M 10B, Han®, Han Easy-Lock® 16B Housings, Han® 24B Bases and Hoods, Han® 48B Housings, Han® 6B Housings, Han® 16A Housings, Han-Snap® Housings, Han® 10B, Han® 6B Bases, Han® B Inserts, Han® 24B Housings, Flange Adapter, Han® 10, 16 and 24B Housings, Han® Ground Terminals, Han Easy-Lock® 32B Housings, Han Easy-Lock® 10B Housings, Han Easy-Lock® Housings, Han Easy-Lock® 32A Housings, Han® 10B Bases |
| Ingress Protection | - | IP68 - Dust Tight, Waterproof, IP65 - Dust Tight, Water Resistant, IP68, IP69K |
| Material | - | Metal, Thermoplastic, Brass, Polyamide (PA), Nylon |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 100 - 130 °C |
| Outside Cable Diameter (Max) | - | 0.315 - 1.457 in |
| Outside Cable Diameter (Max) | - | 0.374 - 37 mm |
| Outside Cable Diameter (Max) | - | 15.5 mm |
| Outside Cable Diameter (Max) | - | 9.5 - 34 mm |
| Outside Cable Diameter (Max) | - | 10.5 - 36 mm |
| Outside Cable Diameter (Max) | - | 0.413 - 1.417 " |
| Outside Cable Diameter (Max) | - | 25 mm |
| Outside Cable Diameter (Min) | - | 6.5 - 35 mm |
| Outside Cable Diameter (Min) | - | 0.256 - 1.378 in |
| Outside Cable Diameter (Min) | - | 7 - 13 mm |
| Outside Cable Diameter (Min) | - | 0.197 - 1.102 in |
| Outside Cable Diameter (Min) | - | 5 - 28 mm |
| Ratings | - | IP65 |
| Specifications | - | 4 - 14 mm |
| Specifications | - | 3 - 13 mm |
| Specifications | - | PG11 Thread, PG13.5 Thread |
| Specifications | - | Thread, PG13.5 Thread, PG9 Thread, PG29 Thread to PG21 Thread, PG16 Thread, PG36 Thread to PG29 Thread, PG42 Thread to PG48 Thread, PG11 Thread to PG9 Thread, PG21 Thread to PG13.5 Thread, M4 Thread, PG21 Thread to PG16 Thread, PG29 Thread, PG21 Thread to PG29 Thread, PG36 Thread, PG21 Thread, PG11 Thread, PG11 Thread to PG7 Thread |
| Specifications | - | 14 - 16 dB |
| Specifications | - | 13.5 - 15 |
| Specifications | - | PG13.5 Thread, PG16, PG21 Thread, PG16 Thread, PG36 Thread |
| Specifications | - | PG11 Thread, PG13.5, PG16 Thread, PG29 Thread |
| Specifications | - | 5 - 10 mm |
| Thread Length | - | 6.5 - 14 mm |
| Thread Length | - | 0.256 - 0.551 in |
| Thread Size | - | PG21, PG16, PG29, PG11, PG36, PG13.5, PG42, M20 |
| Type | - | Cable Gland |
