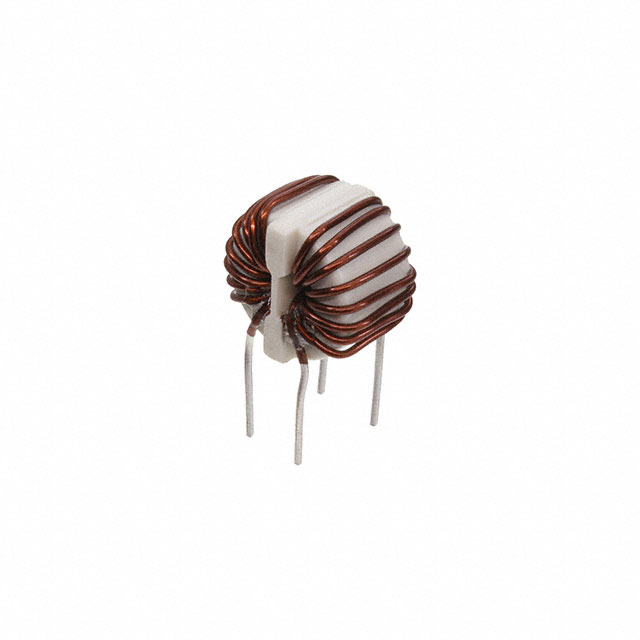

SC-07-100

Active

KEMET

COMMON MODE FILTER, 0.65MH, 7A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

COMMON MODE FILTER, 0.65MH, 7A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Lines	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Inductance @ Frequency	Filter Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Voltage Rating - AC	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - DC	Mounting Type	Package / Case	Package / Case	Height (Max) [Max]	Height (Max)	Height (Max) [Max] [z]	Height (Max) [Max]
KEMET SC-07-E300A	2	-40 °C	120 °C	0.906 in	23 mm	3 mH	Power Line	7 A	45 mOhm	250 V	34 mm	1.339 "	250 V	Through Hole	Horizontal No Base	4 Lead
KEMET SC-07-E042JH	2	-40 °C	120 °C			4.2 mH	Power Line	7 A		250 V	34 mm	1.339 "	250 V	Through Hole	Horizontal	4 Lead	1.063 in	27 mm
KEMET SC-07-650	2	-40 °C	105 ░C	35 mm		6.5 mH	Power Line	7 A	40 mOhm	250 V	35 mm	1.378 in	250 V	Through Hole	4 PC Pin No Base Vertical				1.378 in
KEMET SC-07-030V	2	-40 °C	120 °C			360 µH	Power Line	7 A	14 mOhm	250 V	25 mm	0.984 "	250 V	Through Hole	4 PC Pin No Base Vertical		0.984 in			25 mm
KEMET SC-07-100	2	-40 °C	105 ░C			650 µH	Power Line	7 A	14 mOhm	250 V	25 mm	0.984 "	250 V	Through Hole	4 PC Pin No Base Vertical		0.984 in			25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

650 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 7A DCR 14mOhm
