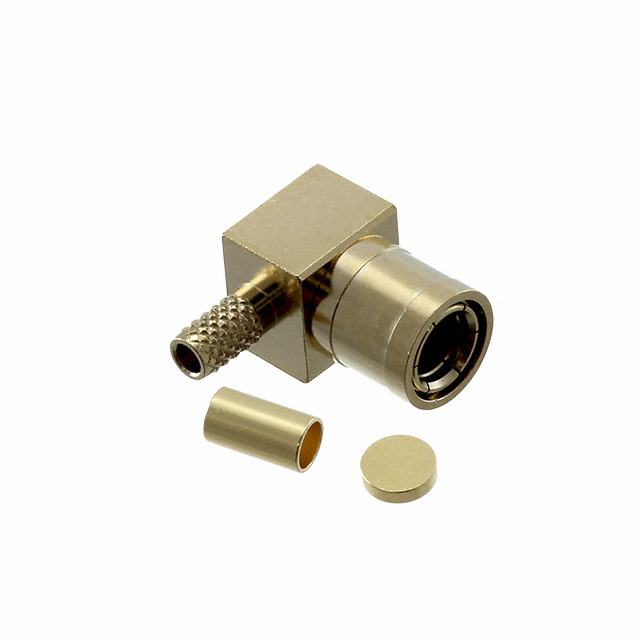

Specification	SMB7H-P-C-HF-RA-CA3

Body Finish	Gold
Body Material	Brass
Cable Group	RG-179
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	4 GHz
Housing Color	Gold
Impedance	75 Ohm
Includes	Ferrule, Connector, Contact
Includes Total Count	3 pcs
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	335 V

SMB7H-P Series

Part	Connector Type	Number of Ports	Shield Termination	Cable Group	Fastening Type	Mounting Type	Contact Termination	Housing Color	Center Contact Material	Connector Style	Impedance	Frequency - Max	Center Contact Plating	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Voltage Rating	Body Material	Includes Total Count	Includes
Samtec Inc. SMB7H-P-C-HF-RA-CA3	Female Socket Plug	1	Crimp	RG-179	Snap-On	Free Hanging (In-Line) Right Angle	Solder	Gold	Copper Alloy	SMB	75 Ohm	4 GHz	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Brass	3 pcs	Connector Contact Ferrule
Samtec Inc. SMB7H-P-C-H-ST-CA3	Female Socket Plug	1	Crimp	RG-179	Snap-On	Free Hanging (In-Line)	Solder	Gold	Copper Alloy	SMB	75 Ohm	4 GHz	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Brass	3 pcs	Connector Contact Ferrule
