SFV22R-2STE1HLF
ActiveAmphenol ICC (FCI)

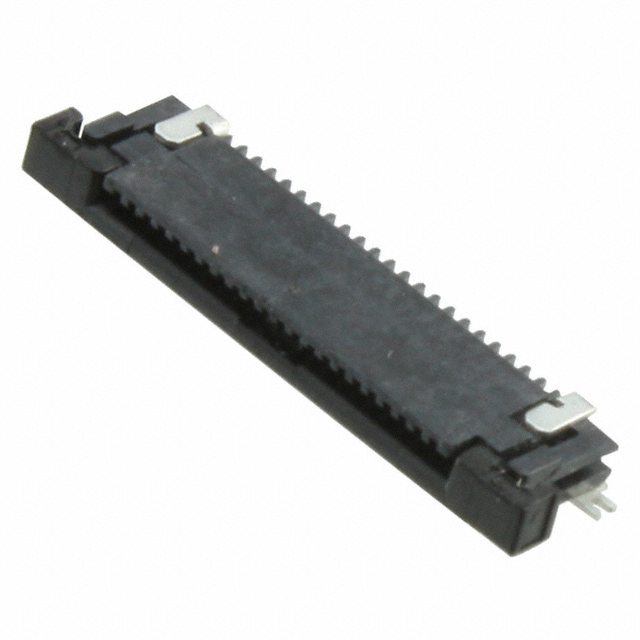

CONN FFC FPC TOP 22POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFV22R-2STE1HLF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 22POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV22R-2STE1HLF |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Notched |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 22 positions |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
