19-159.015
ActiveEAO

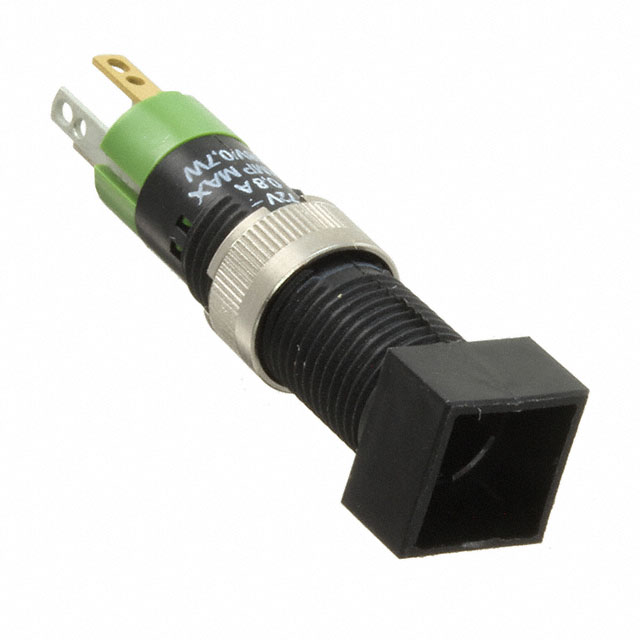

SWITCH PB SPST-NO 0.8A 50V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
19-159.015
ActiveEAO
SWITCH PB SPST-NO 0.8A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 19-159.015 | 19-159 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Square, Button (Not Included) | Square, Button (Not Included) |
| Circuit | SPST-NO | SPST-NO |
| Current Rating (Amps) | 800 mA | 100 - 800 mA |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 2000000 Cycles | 2000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm | 8 mm |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | Quick Connect, Solder | Quick Connect, Solder |
| Termination Style | 2 mm | 2 mm |
| Termination Style | 0.079 in | 0.079 in |
| Type | Standard | Standard |
| Voltage Rating - AC | 50 V | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.08 | |
| 10 | $ 20.05 | |||
| 25 | $ 19.15 | |||
| 50 | $ 18.13 | |||
| 100 | $ 17.46 | |||
| 250 | $ 16.33 | |||
| 500 | $ 13.94 | |||
19-159 Series
SWITCH PB SPST-NO 0.8A 50V
| Part | Actuator Type | Mechanical Life | Circuit | Switch Function | Panel Cutout Dimensions [diameter] | Termination Style | Termination Style | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Current Rating (Amps) | Type | Mounting Type | Actuator Marking | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 19-159.015 | Square, Button (Not Included) | 2000000 Cycles | SPST-NO | Off-Mom | 8 mm | Quick Connect, Solder | 2 mm | 0.079 in | 65 °C | -25 °C | 50 V | 800 mA | Standard | Panel Mount, Front | No Marking | IP40 |
EAO 19-159.035 | Square, Button (Not Included) | 2000000 Cycles | SPST-NO | Off-Mom | 8 mm | Quick Connect, Solder | 2 mm | 0.079 in | 65 °C | -25 °C | 50 V | 100 mA | Standard | Panel Mount, Front | No Marking | IP40 |
Description
General part information
19-159 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
