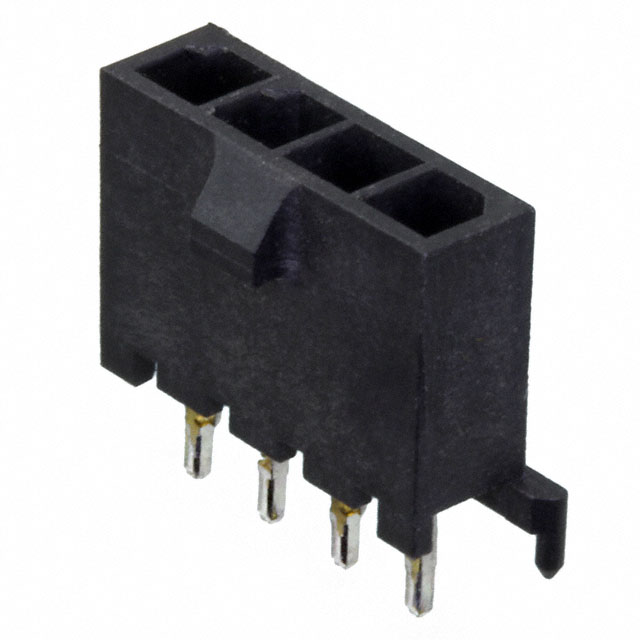

CONN HEADER VERT 4POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1445084-4

Obsolete

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 4POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1445084-4

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	9.25 mm
Insulation Height	0.364 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

1445084 Series

Part	Contact Material	Connector Type	Number of Rows	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Fastening Type	Shrouding	Pitch - Mating	Pitch - Mating	Style	Voltage Rating	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Shape	Number of Positions	Mounting Type	Features	Applications	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material
TE Connectivity Raychem Cable Protection 1445084-4	Brass	Header	1	UL94 V-0	All	Tin-Lead	15 µin	0.38 µm	2.54 µm	100 µin	Male Pin	Locking Ramp	Shrouded - 4 Wall	0.118 in	3 mm	Board to Cable/Wire	250 VDC	9.25 mm	0.364 in	Varies by Wire Gauge	Gold	-40 °C	105 ░C	Black	Square	4	Through Hole	Board Guide	General Purpose	Press-Fit Solder	3.18 mm	0.125 in	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 1445084-5	Brass	Header	1	UL94 V-0	All	Tin-Lead	15 µin	0.38 µm	2.54 µm	100 µin	Male Pin	Locking Ramp	Shrouded - 4 Wall	0.118 in	3 mm	Board to Cable/Wire	250 VDC	9.25 mm	0.364 in	Varies by Wire Gauge	Gold	-40 °C	105 ░C	Black	Square		Through Hole	Board Guide	General Purpose	Press-Fit Solder	3.18 mm	0.125 in	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 2-1445084-5	Brass	Header	1	UL94 V-0	All	Tin	15 µin	0.38 µm	2.54 µm	100 µin	Male Pin	Locking Ramp	Shrouded - 4 Wall	0.118 in	3 mm	Board to Cable/Wire	250 VDC	9.25 mm	0.364 in	Varies by Wire Gauge	Gold	-40 °C	105 ░C	Black	Square		Through Hole	Board Guide	General Purpose	Press-Fit Solder	3.18 mm	0.125 in	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 3-1445084-0	Brass	Header	1	UL94 V-0	All	Tin	15 µin	0.38 µm	2.54 µm	100 µin	Male Pin	Locking Ramp	Shrouded - 4 Wall	0.118 in	3 mm	Board to Cable/Wire	250 VDC	9.25 mm	0.364 in	Varies by Wire Gauge	Gold	-40 °C	105 ░C	Black	Square	10	Through Hole	Board Guide	General Purpose	Press-Fit Solder	3.18 mm	0.125 in	Nylon Polyamide (PA)
