TL6100CF300QP

Active

E-Switch

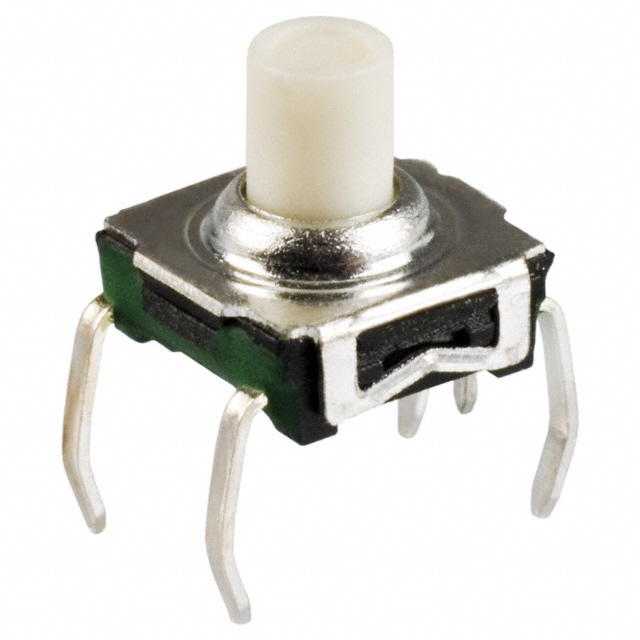

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TL6100CF300QP

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.92
		10	$ 0.88
		60	$ 0.77
		120	$ 0.72
		300	$ 0.65
		540	$ 0.62

Description

General part information

TL6100 Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL6100CF300QP	TL6100 Series

Actuator Height off PCB, Vertical	-	5.2 mm
Actuator Height off PCB, Vertical [z]	6.9 mm	4.7 - 10 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Process Sealed	Process Sealed, Stainless Steel Contact Dome
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	500000 Cycles	500000 - 1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	300 gf	0.5 - 300 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	7.2 mm	7.2 mm
Outline [y]	7.2 mm	7.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.5 mm	0.5 mm
Termination Style	PC Pin	PC Pin

TL6100 Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Illumination	Termination Style	Circuit	Operating Force	Switch Travel	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Material	Features	Mounting Type	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Mechanical Life	Outline [x]	Outline [y]	Switch Function	Actuator Height off PCB, Vertical
E-Switch TL6100AF130QPSSDOME	Non-Illuminated	PC Pin	SPST-NO	130 gf	0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)	Process Sealed	Through Hole	4.7 mm	Top Actuated	1000000 Cycles	7.2 mm	7.2 mm	Off-Mom
E-Switch TL6100CF300QP	Non-Illuminated	PC Pin	SPST-NO	300 gf	0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)	Process Sealed	Through Hole	6.9 mm	Top Actuated	500000 Cycles	7.2 mm	7.2 mm	Off-Mom
E-Switch TL6100DF300QP	Non-Illuminated	PC Pin	SPST-NO	300 gf	0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)	Process Sealed	Through Hole	10 mm	Top Actuated	500000 Cycles	7.2 mm	7.2 mm	Off-Mom
E-Switch TL6100BF500QP	Non-Illuminated	PC Pin	SPST-NO	0.5 kgf	0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)		Through Hole		Top Actuated	1000000 Cycles	7.2 mm	7.2 mm	Off-Mom	5.2 mm
E-Switch TL6100DF130QP	Non-Illuminated	PC Pin	SPST-NO	130 gf	0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)	Process Sealed	Through Hole	10 mm	Top Actuated	1000000 Cycles	7.2 mm	7.2 mm	Off-Mom
E-Switch TL6100DF160QP	Non-Illuminated	PC Pin	SPST-NO		0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)	Process Sealed	Through Hole	10 mm	Top Actuated	1000000 Cycles	7.2 mm	7.2 mm	Off-Mom
E-Switch TL6100DF160QPSSDOME	Non-Illuminated	PC Pin	SPST-NO		0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)	Stainless Steel Contact Dome	Through Hole	10 mm	Top Actuated	1000000 Cycles	7.2 mm	7.2 mm	Off-Mom
E-Switch TL6100DF300QPSSDOME	Non-Illuminated	PC Pin	SPST-NO	300 gf	0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)	Process Sealed	Through Hole	10 mm	Top Actuated	500000 Cycles	7.2 mm	7.2 mm	Off-Mom
E-Switch TL6100AF130QP	Non-Illuminated	PC Pin	SPST-NO	130 gf	0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)	Process Sealed	Through Hole	4.7 mm	Top Actuated	1000000 Cycles	7.2 mm	7.2 mm	Off-Mom
E-Switch TL6100CF130QP	Non-Illuminated	PC Pin	SPST-NO	130 gf	0.5 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	Nylon, Polyamide (PA)	Process Sealed	Through Hole	6.9 mm	Top Actuated	1000000 Cycles	7.2 mm	7.2 mm	Off-Mom
