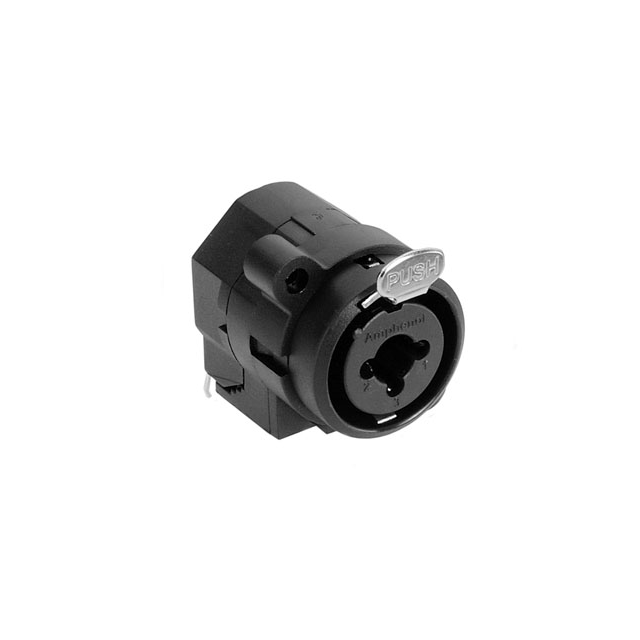

Specification	ACJC10AHL BULK

Body Color	Black
Connector Type	Dual, Phone Jack
Contact Material	Bronze
Contact Material - Plating	Gold
Current Rating	7.5 A
Features	Board Guide
Gender	Female
Housing Material	Nylon 6/6, Glass Filled, PA66, Polyamide
Industry Recognized Mating Diameter (Headphone)	6.35 mm
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Conductors	4
Number of Contacts	11
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Hole Size	0.866 in
Shielding	Unshielded
Signal Lines	4 Conductor, TRRS, Stereo
Termination	Kinked Pin, Solder

ACJC10 Series

Part	Features	Termination	Signal Lines	Gender	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Internal Switch Count	Industry Recognized Mating Diameter (Headphone)	Number of Conductors	Number of Contacts	Connector Type	Current Rating	Body Color	Panel Hole Size	Housing Material	Contact Material - Plating	Contact Material	Internal Switch(s)
McGill Microwave Systems ACJC10AV2L BULK	Board Guide	Kinked Pin Solder	3 Conductor Stereo TRS	Female	Unshielded	70 °C	-25 °C	Panel Mount Through Hole	3 count	6.35 mm	3 Conductors	11 Contacts	Dual Phone Jack	7.5 A	Black	0.937 in	Glass Filled Nylon 6/6 PA66 Polyamide	Gold Silver	Brass Bronze
McGill Microwave Systems ACJC10AHL BULK	Board Guide	Kinked Pin Solder	4 Conductor Stereo TRRS	Female	Unshielded	70 °C	-25 °C	Panel Mount Right Angle Through Hole		6.35 mm	4	11	Dual Phone Jack	7.5 A	Black	0.866 in	Glass Filled Nylon 6/6 PA66 Polyamide	Gold	Bronze	Does Not Contain Switch
McGill Microwave Systems ACJC10S BULK	Board Guide	Solder	3 Conductor Stereo TRS	Female	Unshielded	70 °C	-25 °C	Panel Mount Through Hole	3 count	6.35 mm	3 Conductors	11 Contacts	Dual Phone Jack	7.5 A	Black	0.937 in	Glass Filled Nylon 6/6 PA66 Polyamide	Gold Silver	Brass Bronze
