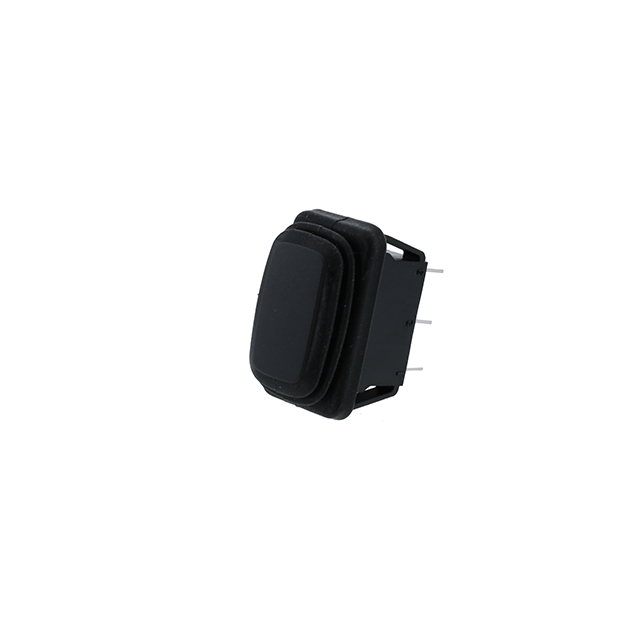

RE2-1G-DC-1-B

Active

Switch Components

MID-SIZE SP (ON)-OFF-(ON) IP65

Search across all available documentation for this part.

Active

Switch Components

MID-SIZE SP (ON)-OFF-(ON) IP65

Technical Specifications

Parameters and characteristics for this part

Specification	RE2-1G-DC-1-B

Actuator Marking	No Marking
Actuator Type	Flat
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	6000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	27.6 mm
Panel Cutout Dimensions [y]	13.8 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

MID-SIZE SP (ON)-OFF-(ON) IP65

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Type	Switch Function	Actuator Marking	Ingress Protection	Current Rating (Amps)	Voltage Rating - AC	Electrical Life	Termination Style	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Circuit	Mounting Type
Switch Components RE2-1G-DC-1-B	-25 °C	85 °C	10000 Steps	Flat	Mom-Off-Mom	No Marking	IP65 - Dust Tight, Water Resistant	15 A	125 V	6000 Cycles	Quick Connect - 0.250" (6.3mm)	12 V	13.8 mm	27.6 mm	Black	SPDT	Panel Mount, Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPDT 15A (DC) 125 V Panel Mount, Snap-In
