794066-2
ActiveTE Connectivity AMP Connectors

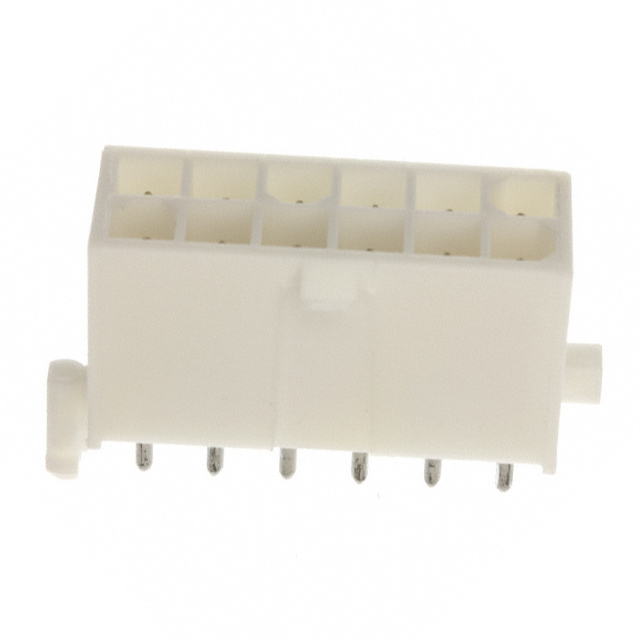

CONN HEADER VERT 12POS 4.14MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794066-2
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 12POS 4.14MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794066-2 | 794066 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold, Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 - 150 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 - 3.81 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Post | 4.45 mm | 4.45 mm |
| Contact Length - Post | 0.175 in | 0.175 in |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | White | White |
| Insulation Height | 13.5 mm | 13.5 mm |
| Insulation Height | 0.531 in | 0.531 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 12 | 12 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 85 - 105 ░C |
| Operating Temperature [Min] | -20 C | -20 C |
| Pitch - Mating | 4.14 mm | 4.14 mm |
| Pitch - Mating | 0.163 in | 0.163 in |
| Row Spacing - Mating | 4.14 mm | 4.14 mm |
| Row Spacing - Mating | 0.163 in | 0.163 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 600 VAC | 600 VAC |
794066 Series
CONN HEADER VERT 12POS 4.14MM
| Part | Voltage Rating | Number of Positions | Mounting Type | Insulation Height | Insulation Height | Insulation Material | Contact Shape | Current Rating (Amps) | Number of Positions Loaded | Style | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Finish - Mating | Shrouding | Contact Length - Post | Contact Length - Post | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Applications | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Fastening Type | Contact Type | Contact Finish - Post | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-794066-1 | 600 VAC | 12 | Through Hole | 13.5 mm | 0.531 in | Nylon, Polyamide (PA) | Circular | Varies by Wire Gauge | All | Board to Cable/Wire | -20 C | 105 ░C | UL94 V-0 | Gold | Shrouded - 4 Wall | 4.45 mm | 0.175 in | Header | 4.14 mm | 0.163 in | General Purpose | Brass | 30 Áin | 0.76 Ám | Solder | 4.14 mm | 0.163 in | 150 Áin | 3.81 Ám | White | Locking Ramp | Male Pin | Tin | 2 |
TE Connectivity AMP Connectors 794066-2 | 600 VAC | 12 | Through Hole | 13.5 mm | 0.531 in | Nylon, Polyamide (PA) | Circular | Varies by Wire Gauge | All | Board to Cable/Wire | -20 C | 105 ░C | UL94 V-0 | Gold | Shrouded - 4 Wall | 4.45 mm | 0.175 in | Header | 4.14 mm | 0.163 in | General Purpose | Brass | 30 Áin | 0.76 Ám | Solder | 4.14 mm | 0.163 in | 150 Áin | 3.81 Ám | White | Locking Ramp | Male Pin | Tin-Lead | 2 |
TE Connectivity AMP Connectors 794066-1 | 600 VAC | 12 | Through Hole | 13.5 mm | 0.531 in | Nylon, Polyamide (PA) | Circular | Varies by Wire Gauge | All | Board to Cable/Wire | -20 C | 85 °C | UL94 V-0 | Tin-Lead | Shrouded - 4 Wall | 4.45 mm | 0.175 in | Header | 4.14 mm | 0.163 in | General Purpose | Brass | 150 Áin | 3.81 Ám | Solder | 4.14 mm | 0.163 in | 150 Áin | 3.81 Ám | White | Locking Ramp | Male Pin | Tin-Lead | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794066 Series
Connector Header Through Hole 12 position 0.163" (4.14mm)
