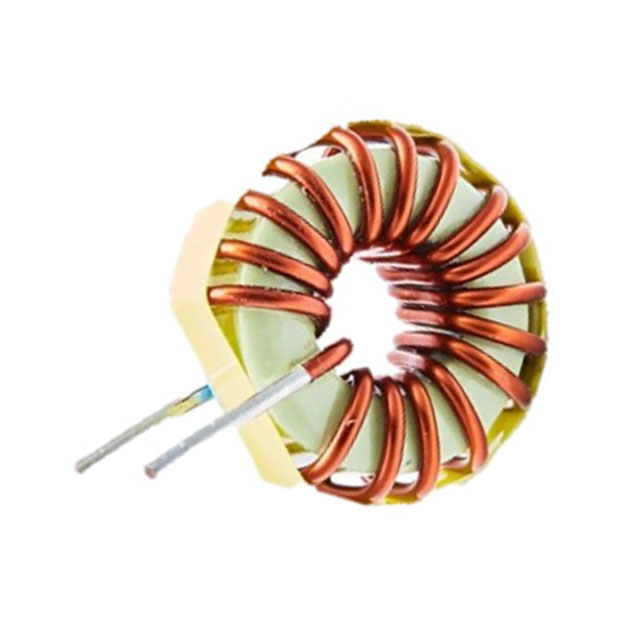

HCTI-33-11.7

Active

Signal Transformer

POWER INDUCTORS - LEADED HIGH CURR TOROIDAL INDUCTOR 33 UH

Search across all available documentation for this part.

Active

Signal Transformer

POWER INDUCTORS - LEADED HIGH CURR TOROIDAL INDUCTOR 33 UH

Technical Specifications

Parameters and characteristics commom to parts in this series

Power Inductors - Leaded HIGH CURR TOROIDAL INDUCTOR 12 UH

Part	Type	DC Resistance (DCR)	Mounting Type	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	Tolerance	Current Rating (Amps)	Package / Case	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Shielding
Signal Transformer HCTI-33-11.7	Toroidal	13 mOhm	Through Hole	16.51 mm	1.28 "	0.65 in	32.51 mm	15 %	11.7 A	Radial, Vertical (Open)	33 µH	105 ░C	-55 °C	Shielded
Signal Transformer HCTI-560-3.6	Toroidal	140 mOhm	Through Hole	16.51 mm	1.28 "	0.65 in	32.51 mm	15 %	3.6 A	Radial, Vertical (Open)	560 µH	105 ░C	-55 °C	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Inductors - Leaded HIGH CURR TOROIDAL INDUCTOR 12 UH

Technical documentation and resources
