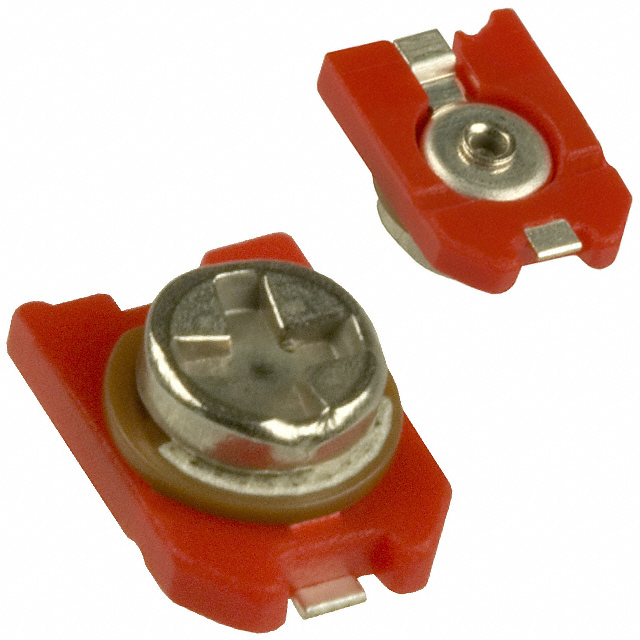

TZC3P200A310R00
UnknownMurata Power Solutions Inc.
CAP TRIMMER 5-20PF 100V SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TZC3P200A310R00
UnknownMurata Power Solutions Inc.
CAP TRIMMER 5-20PF 100V SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TZC3P200A310R00 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range [Max] | 20 pF |
| Capacitance Range [Min] | 5 pF |
| Dielectric Material | Ceramic |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 0.067 in |
| Height - Seated (Max) [Max] | 1.7 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Q @ Freq | 1 MHz, 300 |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| Digi-Reel® | 1 | $ 0.81 | ||
| Tape & Reel (TR) | 1000 | $ 0.29 | ||
Description
General part information
TZC3P200 Series
5 ~ 20pF Trimmer Capacitor 100 V Top Surface Mount
