P205W Series

Part	Type	Lens Style	Ratings	Current	Lens Color	Lamp Color	Millicandela Rating	Panel Cutout Dimension	Termination Style	Voltage	Viewing Angle	Wavelength - Peak	Panel Cutout Shape	Lens Diameter	Termination Length	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Wavelength - Peak Colors	Wavelength - Peak (Red)	Wavelength - Peak (Green)

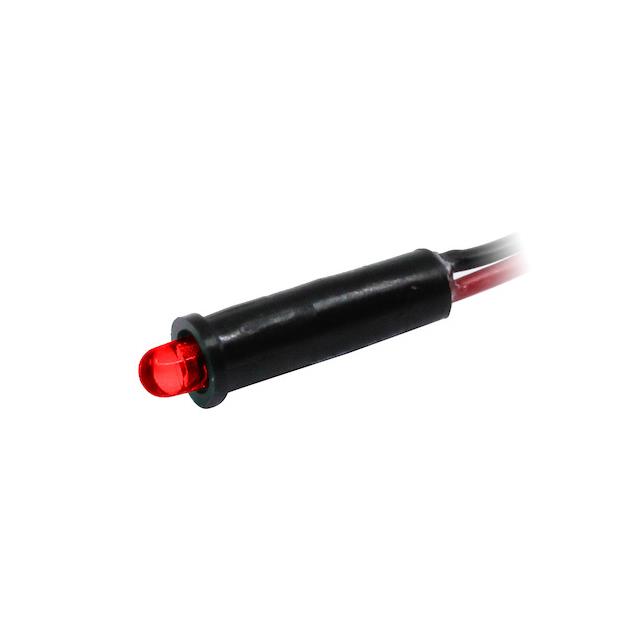

Visual Communications Company - VCC P205W-BR5H	LED	Domed Top Round	If (Max) Vf (Typ)	28 mA	Red	Red	14 mcd	0.16 "	Wire Leads	5.5 V	60 °	635 nm	Round	2.92 mm
Visual Communications Company - VCC P205W-DRG5H	LED	Domed Top Round	If (Max) Vf (Typ)	22 mA		Green Red		0.16 "	Wire Leads	5 VDC	118 °		Round	4.83 mm	6 in	Green Red	3.7 mcd	4.3 mcd	Green Red	635 nm	567 nm
Visual Communications Company - VCC P205W-BR2	LED	Domed Top Round	DC			Red	14 mcd	0.16 "	Wire Leads	2 V	60 °	635 nm	Round	4.83 mm	6 in
Visual Communications Company - VCC P205W-NWG28H	LED	Domed Top Round	If (Max) Vf (Typ)	16.5 mA		Green	2000 mcd	0.16 "	Wire Leads	28 V	45 °	520 nm	Round	4.83 mm	6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
