577102B04000G
ActiveBoyd Laconia, LLC

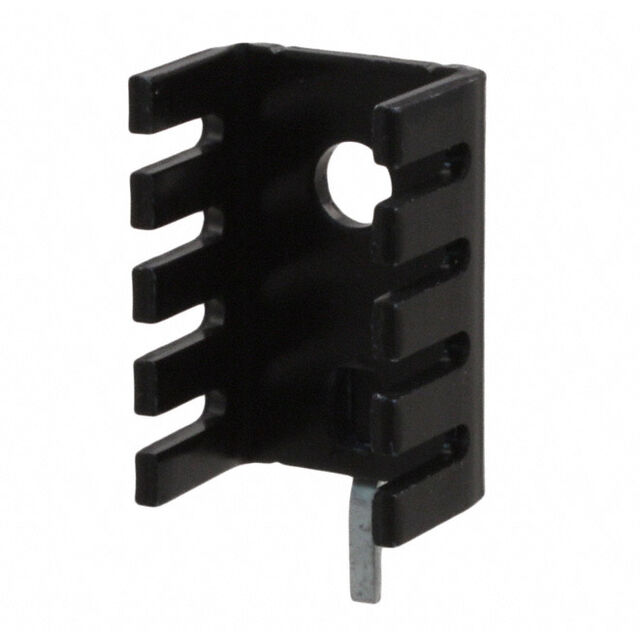

HEATSINK TO-220 W/TAB .375"
577102B04000G
ActiveBoyd Laconia, LLC
HEATSINK TO-220 W/TAB .375"
Description
General part information
577102 Series
Heat Sink TO-220 Aluminum 1.0W @ 30°C Board Level, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 577102B04000G |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 0.375 in |
| Length | 0.75 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation | 1 W |
| Shape | Fins, Rectangular |
| Thermal Resistance | 25.9 °C/W, 8 °C/W |
| Type | Vertical, Board Level |
| Width | 0.52 in |
