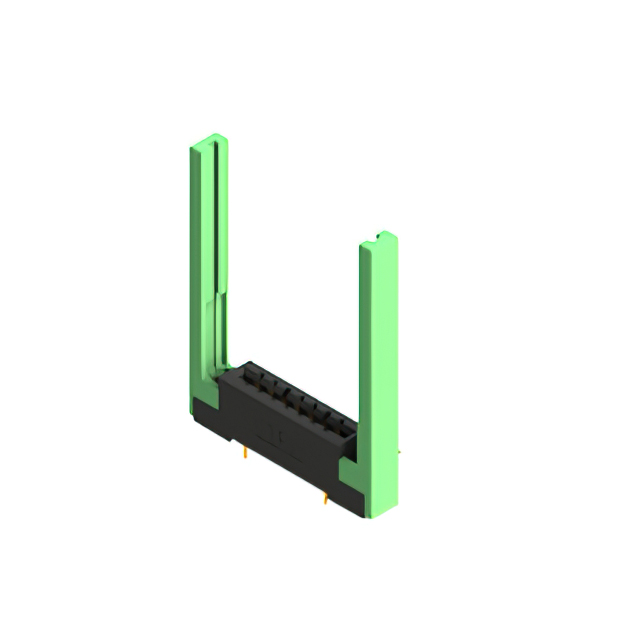

387-014-559-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-014-559-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-014-559-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
387-014 Series
...
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Color | Number of Positions/Bay/Row [custom] | Read Out | Card Type | Contact Type | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Termination Rows | Gender | Material - Insulation | Number of Rows | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Black | 14 | Single | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | Polyester Thermoplastic | 1 | 14 | 10 Áin | 0.25 Ám | Through Hole | Gold | |||||
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | Black | 14 | Single | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Female | Polyester Thermoplastic | 1 | 14 | 10 Áin | 0.25 Ám | Through Hole | Gold | ||||||
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Black | 7 | Dual | Non Specified - Dual Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | Female | Polyester Thermoplastic | 2 | 14 | 10 Áin | 0.25 Ám | Through Hole | Gold | 3.25 mm | 0.128 " | |||
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Black | 14 | Single | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | Polyester Thermoplastic | 1 | 14 | 10 Áin | 0.25 Ám | Through Hole | Gold | |||||
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Black | 14 | Single | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Female | Polyester Thermoplastic | 1 | 14 | 10 Áin | 0.25 Ám | Through Hole | Gold | |||||
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | Black | 7 | Dual | Non Specified - Dual Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | Female | Polyester Thermoplastic | 2 | 14 | 10 Áin | 0.25 Ám | Through Hole | Gold | ||||||
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | Black | 14 | Single | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | Polyester Thermoplastic | 1 | 14 | 10 Áin | 0.25 Ám | Through Hole Right Angle | Gold | 3.25 mm | 0.128 " | |||
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Black | 7 | Dual | Non Specified - Dual Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 2 | Female | Polyester Thermoplastic | 2 | 14 | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Gold | 3.25 mm | 0.128 " | Card Extender | ||
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Black | 7 | Dual | Non Specified - Dual Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2 | Female | Polyester Thermoplastic | 2 | 14 | 10 Áin | 0.25 Ám | Through Hole Right Angle | Gold | |||||
EDAC Inc. | Copper Alloy | -40 °C | 105 ░C | Black | 14 | Single | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Female | Polyester Thermoplastic | 1 | 14 | 10 Áin | 0.25 Ám | Through Hole | Gold | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-014 Series
14 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
