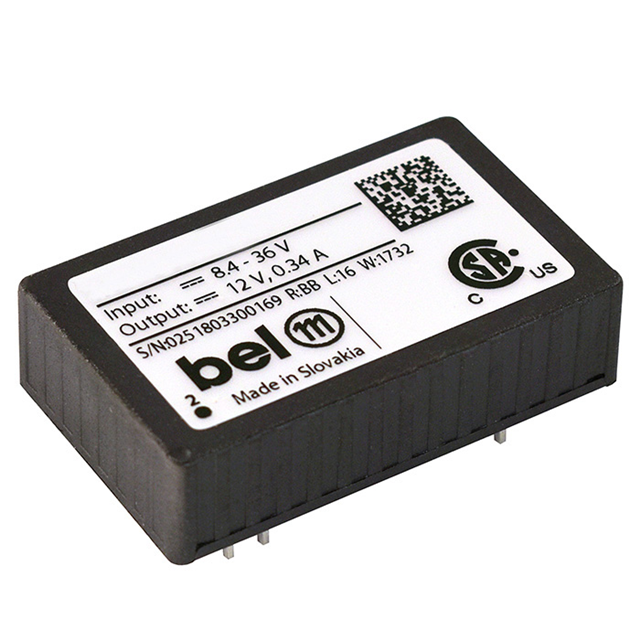

20IMX4-1515-8G

Active

Bel Power Solutions

DC DC CONVERTER +/-15V 4W

Deep-Dive with AI

Search across all available documentation for this part.

20IMX4-1515-8G

Active

Bel Power Solutions

DC DC CONVERTER +/-15V 4W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.03
		5	$ 67.91
		10	$ 66.21
		25	$ 64.02
		60	$ 62.00
		120	$ 60.44

Description

General part information

20IMX4 Series

Isolated Module, Conformal Coated DC DC Converter 2 Output 15V -15V 140mA, 140mA 8.4V - 36V Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20IMX4-1515-8G	20IMX4 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Current - Output (Max)	-	80 - 170 mA
Current - Output (Max)	-	170 mA
Current - Output (Max) [Max]	140 mA	140 - 900 mA
Current - Output (Max) [Min]	140 mA	140 mA
Efficiency	-	79 - 83 %
Features	OTP, SCP, OVP, OCP	OTP, SCP, OVP, OCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	24-DIP Module	24-DIP Module, 13 Leads, 24-DIP Module
Power (Watts)	4 W	3.8 - 4 W
Size / Dimension [x]	1.3 "	1.3 "
Size / Dimension [x]	33 mm	33 mm
Size / Dimension [y]	20.1 mm	20.1 mm
Size / Dimension [y]	0.79 "	0.79 "
Size / Dimension [z]	8.6 mm	8.4 - 8.6 mm
Size / Dimension [z]	0.34 in	0.33 - 0.34 in
Type	Isolated Module, Conformal Coated	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	8.4 V	8.4 V
Voltage - Isolation	1.5 kV	1.2 - 2000 V
Voltage - Output 1	15 V	3.3 - 24 V
Voltage - Output 2	-15 V	-24 - -12 V

20IMX4 Series

DC DC CONVERTER +/-24V 3.8W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Isolation	Current - Output (Max)	Efficiency	Voltage - Output 2	Mounting Type	Package / Case	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Features	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Min]
Bel Power Solutions 20IMX4-2424-8G	85 °C	-40 °C	3.8 W	ITE (Commercial), Railway	1.3 "	8.4 mm	33 mm	0.33 in	0.79 "	20.1 mm	8.4 V	2	2000 V	80 mA	83 %	-24 V	Through Hole	24-DIP Module, 13 Leads	24 V	Conformal Coated, Isolated Module	36 V	OCP, OTP, OVP, SCP
Bel Power Solutions 20IMX4-1212-8KG	85 °C	-40 °C	4 W	ITE (Commercial), Railway	1.3 "	8.6 mm	33 mm	0.34 in	0.79 "	20.1 mm	8.4 V	2	1.5 kV	170 mA		-12 V	Through Hole	24-DIP Module	12 V	Conformal Coated, Isolated Module	36 V	OCP, OTP, OVP, SCP	170 mA
Bel Power Solutions 20IMX4-05-8	85 °C	-40 °C	4 W	ITE (Commercial), Railway	1.3 "	8.6 mm	33 mm	0.34 in	0.79 "	20.1 mm	8.4 V	1	1.5 kV		81 %		Through Hole	24-DIP Module	5 V	Conformal Coated, Isolated Module	36 V	OCP, OTP, OVP, SCP		700 mA
Bel Power Solutions 20IMX4-1515-8G	85 °C	-40 °C	4 W	ITE (Commercial), Railway	1.3 "	8.6 mm	33 mm	0.34 in	0.79 "	20.1 mm	8.4 V	2	1.5 kV			-15 V	Through Hole	24-DIP Module	15 V	Conformal Coated, Isolated Module	36 V	OCP, OTP, OVP, SCP		140 mA	140 mA
Bel Power Solutions 20IMX4-03-8G	85 °C	-40 °C	4 W	ITE (Commercial), Railway	1.3 "	8.6 mm	33 mm	0.34 in	0.79 "	20.1 mm	8.4 V	1	1.5 kV		79 %		Through Hole	24-DIP Module	3.3 V	Conformal Coated, Isolated Module	36 V	OCP, OTP, OVP, SCP		900 mA
Bel Power Solutions 20IMX4-1212-8	85 °C	-40 °C	4 W	ITE (Commercial), Railway	1.3 "	8.6 mm	33 mm	0.34 in	0.79 "	20.1 mm	8.4 V	2	1.5 kV	170 mA		-12 V	Through Hole	24-DIP Module	12 V	Conformal Coated, Isolated Module	36 V	OCP, OTP, OVP, SCP	170 mA
Bel Power Solutions 20IMX4-1212-8G	85 °C	-40 °C	4 W	ITE (Commercial), Railway	1.3 "	8.4 mm	33 mm	0.33 in	0.79 "	20.1 mm	8.4 V	2	1.2 kV	170 mA		-12 V	Through Hole	24-DIP Module, 13 Leads	12 V	Conformal Coated, Isolated Module	36 V	OTP, OVP, SCP	170 mA
Bel Power Solutions 20IMX4-05-8KG	85 °C	-40 °C	4 W	ITE (Commercial), Railway	1.3 "	8.4 mm	33 mm	0.33 in	0.79 "	20.1 mm	8.4 V	1	1.2 kV		81 %		Through Hole	24-DIP Module, 13 Leads	5 V	Conformal Coated, Isolated Module	36 V	OTP, OVP, SCP		700 mA
Bel Power Solutions 20IMX4-1515-8	85 °C	-40 °C	4 W	ITE (Commercial), Railway	1.3 "	8.6 mm	33 mm	0.34 in	0.79 "	20.1 mm	8.4 V	2	1.5 kV			-15 V	Through Hole	24-DIP Module	15 V	Conformal Coated, Isolated Module	36 V	OCP, OTP, OVP, SCP		140 mA	140 mA
