W7382-4PG-P-300

Active

Conxall/Switchcraft

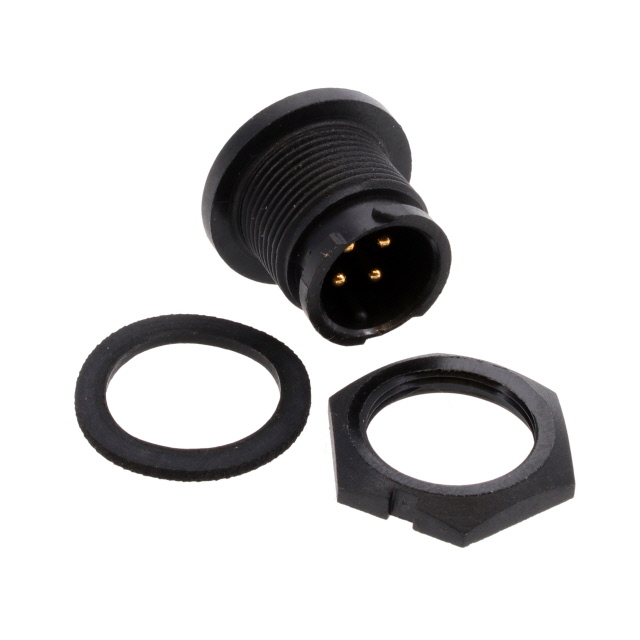

CONN RCPT MALE 4POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W7382-4PG-P-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

CONN RCPT MALE 4POS SOLDER CUP

Part	Contact Finish - Mating	Connector Type	Insert Material	Current Rating (Amps)	Voltage Rating	Color	Number of Positions	Features	Primary Material	Applications	Orientation	Backshell Material, Plating	Contact Material	Fastening Type	Mounting Feature	Ingress Protection	Shielding	Operating Temperature [Max]	Operating Temperature [Min]
Conxall/Switchcraft W7382-4PG-P-300	Gold	Male Pins, Receptacle	Thermoplastic	Varies by Wire Gauge	300 VAC	Black	4	UV Resistant	Plastic	Automotive, Communication Systems, Instrumentation	Keyed	Thermoplastic	Copper Alloy	Bayonet Lock	Bulkhead - Front Side Nut	IP66, IP67, IP68	Unshielded	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
