82-650-71

Active

Grayhill Inc.

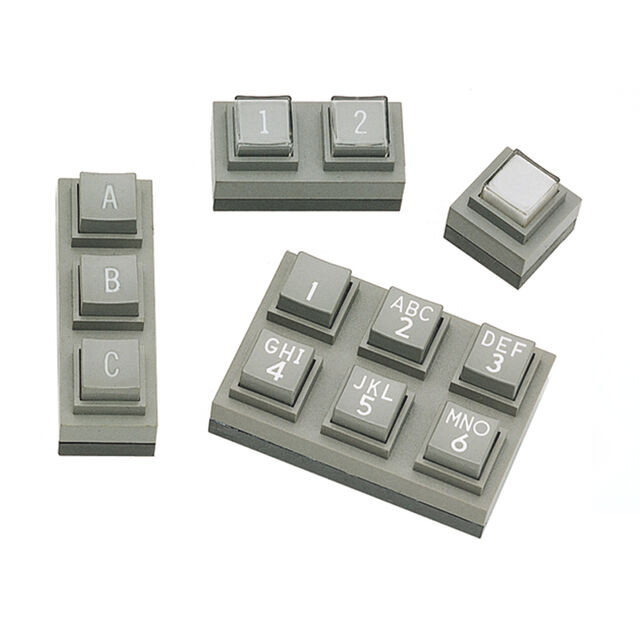

SWITCH KEYPAD 6KEY ILLUM 0.1A 5V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 6KEY ILLUM 0.1A 5V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	82-650-71	82-650 Series

Contact Rating @ Voltage	5 VDC, 0.1 A	0.1 - 5 VDC
Illumination	Illuminated - Light Source Not Included	Illuminated - Light Source Not Included
Key Color	Black	Gray, Black
Key Type	Transparent Key Cap	Transparent Key Cap
Legend	Customizable (Sold Separate)	Customizable (Sold Separate)
Legend Type	Interchangeable	Interchangeable
Matrix (Columns x Rows) [custom]	3	3
Matrix (Columns x Rows) [custom]	2	2
Mounting Type	Through Hole	Through Hole
Number of Keys	6	6
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Operational Life	1000000 Cycles	1000000 Cycles
Output Type	Independent Switches (SPST)	Independent Switches (SPST)
Switch Type	Keyswitch	Keyswitch
Termination Style	PC Pin	PC Pin

SWITCH KEYPAD 6KEY ILLUM 0.1A 5V

Part	Contact Rating @ Voltage	Number of Keys	Key Color	Termination Style	Illumination	Operational Life	Operating Temperature [Min]	Operating Temperature [Max]	Legend	Switch Type	Output Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Legend Type	Mounting Type	Key Type
Grayhill Inc. 82-650-19	0.1 A, 5 VDC	6	Gray	PC Pin	Illuminated - Light Source Not Included	1000000 Cycles	-40 °C	80 C	Customizable (Sold Separate)	Keyswitch	Independent Switches (SPST)	3	2	Interchangeable	Through Hole	Transparent Key Cap
Grayhill Inc. 82-650-71	0.1 A, 5 VDC	6	Black	PC Pin	Illuminated - Light Source Not Included	1000000 Cycles	-40 °C	80 C	Customizable (Sold Separate)	Keyswitch	Independent Switches (SPST)	3	2	Interchangeable	Through Hole	Transparent Key Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 40.74

General part information

Keypad Switch 6 Transparent Key Cap Keys Keyswitch Contacts Independent Switches (SPST) Output Illuminated - Light Source Not Included 0.1A @ 5VDC
