A3FS

Active

Switchcraft Inc.

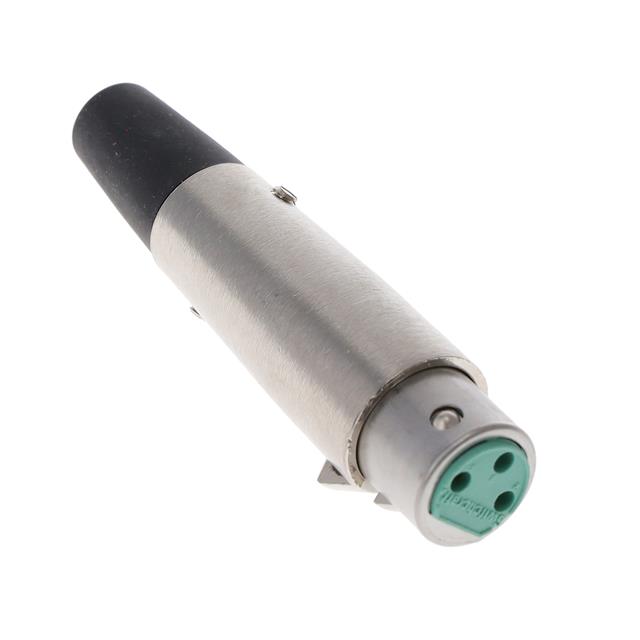

CONN PLUG FMALE XLR 3POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A3FS

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.43
		10	$ 7.25
		25	$ 6.55
		50	$ 6.31

Description

General part information

A3F Series

3 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A3FS	A3F Series

Applications	Audio, Instrumentation	Audio, Instrumentation
Backshell Material, Plating	Zinc, Nickel	Zinc, Black Finish, Nickel
Cable Opening	-	5.33 mm
Cable Opening	-	0.3 in
Cable Opening	-	0.21 in
Cable Opening	-	7.62 mm
Cable Opening [custom]	5.21 mm, 2.67 mm	2.67 - 8.33 mm
Cable Opening [custom]	0.205 in, 0.105 in	0.105 - 0.328 in
Color	Silver	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver, Gold
Contact Material	Brass	Brass
Current Rating (Amps)	15 A	15 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Polyester	Polyester
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Material	Stainless Steel	Stainless Steel
Shell Size - Insert	XLR	XLR
Voltage Rating	125 VAC	125 VAC

A3F Series

CONN PLUG FMALE XLR 3POS SOLDER

Part	Insert Material	Applications	Current Rating (Amps)	Primary Material	Backshell Material, Plating	Shell Material	Features	Connector Type	Fastening Type	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Orientation	Shell Size - Insert	Contact Material	Voltage Rating	Color	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. A3FBX	Polyester	Audio, Instrumentation	15 A	Metal	Black Finish, Zinc	Stainless Steel	Backshell, Cable Clamp, Ground, Strain Relief	Female Sockets, Plug	Latch Lock	Free Hanging (In-Line)	5.33 mm	0.3 in	0.21 in	7.62 mm	Keyed	XLR	Brass	125 VAC	Black	Silver
Switchcraft Inc. A3FBAU	Polyester	Audio, Instrumentation	15 A	Metal	Black Finish, Zinc	Stainless Steel	Backshell, Cable Clamp, Ground, Strain Relief	Female Sockets, Plug	Latch Lock	Free Hanging (In-Line)	5.33 mm	0.3 in	0.21 in	7.62 mm	Keyed	XLR	Brass	125 VAC	Black	Gold
Switchcraft Inc. A3FL	Polyester	Audio, Instrumentation	15 A	Metal	Nickel, Zinc	Stainless Steel	Backshell, Cable Clamp, Ground, Strain Relief	Female Sockets, Plug	Latch Lock	Free Hanging (In-Line)					Keyed	XLR	Brass	125 VAC	Silver	Silver	0.3 in, 0.328 in	7.62 mm, 8.33 mm
Switchcraft Inc. A3FB	Polyester	Audio, Instrumentation	15 A	Metal	Black Finish, Zinc	Stainless Steel	Backshell, Cable Clamp, Ground, Strain Relief	Female Sockets, Plug	Latch Lock	Free Hanging (In-Line)	5.33 mm	0.3 in	0.21 in	7.62 mm	Keyed	XLR	Brass	125 VAC	Black	Silver
Switchcraft Inc. A3FS	Polyester	Audio, Instrumentation	15 A	Metal	Nickel, Zinc	Stainless Steel	Backshell, Cable Clamp, Ground, Strain Relief	Female Sockets, Plug	Latch Lock	Free Hanging (In-Line)					Keyed	XLR	Brass	125 VAC	Silver	Silver	0.105 in, 0.205 in	2.67 mm, 5.21 mm
