341-116-556-203
ActiveEDAC Inc.

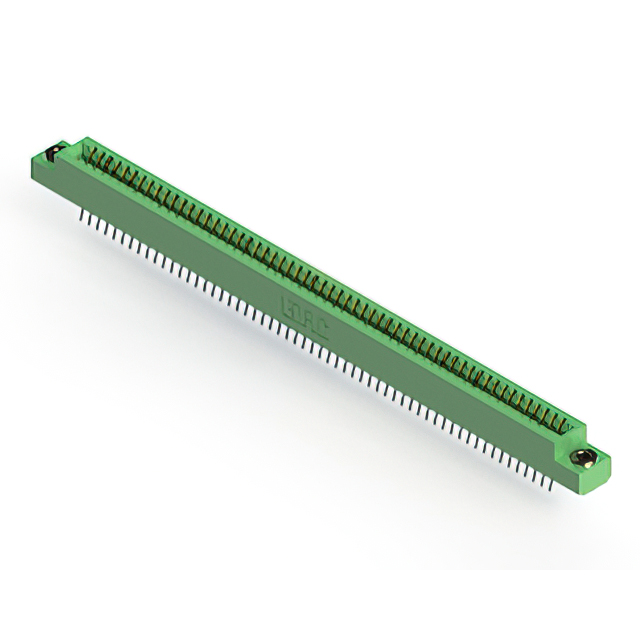

CARD EDGE CONNECTOR, 116 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.116, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-116-556-203
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 116 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.116, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-116-556-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 116 |
| Number of Positions/Bay/Row [custom] | 58 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-116 Series
| Part | Contact Material | Number of Positions/Bay/Row [custom] | Contact Finish | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination Rows | Read Out | Features | Mounting Type | Material - Insulation | Color | Termination | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Card Extender | Through Hole | Polyester Thermoplastic | Green | Solder Eyelet(s) | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | Non Specified - Dual Edge |
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Card Extender | Board Edge Straddle Mount | Polyester Thermoplastic | Green | Solder | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | Non Specified - Dual Edge |
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Card Extender | Board Edge Straddle Mount | Polyester Thermoplastic | Green | Solder | Female | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 2 | Non Specified - Dual Edge |
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Card Extender | Through Hole | Polyester Thermoplastic | Green | Solder | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | Non Specified - Dual Edge |
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Card Extender | Board Edge Straddle Mount | Polyester Thermoplastic | Green | Solder | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | ||
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Through Hole | Polyester Thermoplastic | Green | Solder | Female | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | Non Specified - Dual Edge | |
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Through Hole | Polyester Thermoplastic | Green | Solder | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | |||
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Through Hole | Diallyl Phthalate (DAP) | Green | Solder Eyelet(s) | Female | 2 | Non Specified - Dual Edge | ||||
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Through Hole | Diallyl Phthalate (DAP) | Green | Solder Eyelet(s) | Female | Flush Mount M3 Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | |||
EDAC Inc. | Copper Alloy | 58 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 116 | 2 | Dual | Through Hole | Diallyl Phthalate (DAP) | Green | Solder Eyelet(s) | Female | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
341-116 Series
116 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
